Systemair 40016 SYSTEMAIR FKD 12 MIXED FLOW FAN 115V 1305 CFM 40016

Product Description

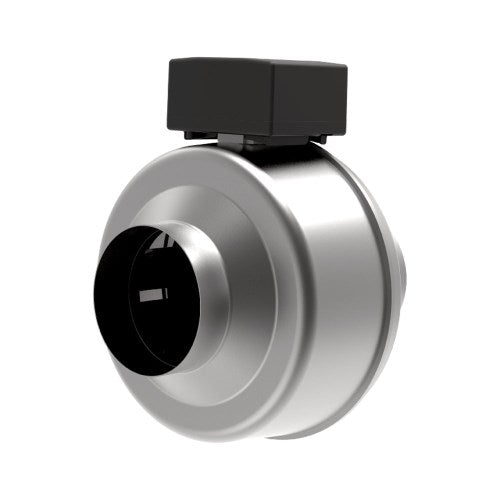

The Systemair FKD 12 Mixed Flow Fan, identified by MPN 40016, is a direct-drive fan combining the benefits of high airflow from axial fans with the pressure suitability of backward-curved impellers. This fan is appropriate for both exhaust and supply needs in commercial, institutional, or residential spaces. Its mixed-flow impeller greatly diminishes external dimensions while providing efficient airflow, and it comes equipped with installation brackets for straightforward setup. The fan includes thermal contacts to safeguard the motor from overheating and can be controlled fully for speed adjustments.

• Features a mixed-flow impeller for efficient air movement.
• Offers 100% speed controllability for customized performance.
• Includes integral thermal contacts to protect the motor from overheating.

Product Highlights

Product Information

Standard Information

• Brand: Systemair
• MPN: 40016

Technical Specifications

• Voltage: 115 V
• Frequency: 60 Hz
• Phase: 1 ~
• Input power (P1): 484 W
• Current: 4.86 A
• Max. airflow: 1305 cfm
• Fan impeller speed: 2944 r.p.m.
• Max. temperature of transported air: 140 °F
• Insulation class: B
• Enclosure class, motor: IP44
• Weight: 19.9 lbs
• Dimensions: Length 17.01 inches, Width 17.01 inches, Height 19.02 inches
