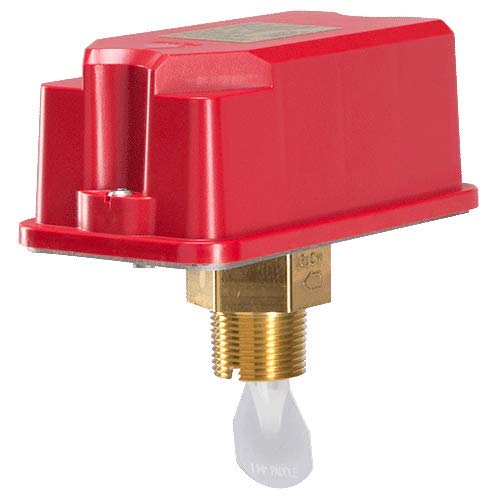

System Sensor WFDTN Waterflow Detector, 1 inches, 1.25 inches, 1.5 inches, 2 inches Pipe Size with 1 inches NPT

Product Description

The System Sensor WFDTN Series waterflow detector features a NEMA 4-rated enclosure designed for both indoor and outdoor use. It accommodates 1 in., 11/4 in., 11/2 in. and 2 in. NPT threaded ferrous and brass tees; 1 in., 1 1/4 in., 11/2 in. and 2 in. copper sweat tees; Tyco, Spears, NIBBCO brand 1 in. CPVC tees. The detector offers improved performance during vibration in riser applications.

• New directional cover allows installers and inspectors to easily see the direction of flow
• UL-listed models are NEMA 4 rated
• New cover provides a better seal, is lighter weight, not painted and corrosion resistant

Product Highlights

Designed for accuracy, the WFDTN incorporates a mechanical time delay feature to minimize false alarms. It includes tamper-resistant cover screws and wire-ready terminals for easy installation.

Product Information

Standard Information

• Brand: SYSTEM SENSOR
• Manufacturer Part Number: WFDTN

Technical Specifications

• UNSPSC Code: 46171600
• Manufacturer: System Sensor
• Brand: System Sensor
• Model / MPN: WFDTN
• Product Type: Waterflow Detector
• Application: Residential
• Color Finish Category: Reds
• Color Finish Name: Red
• End Connection 1: NPT
• End Connections: NPT
• FM Approved: Yes
• Fits Pipe Size: 1 in - 2 in
• Flow Rate: 10 gpm
• Maximum Temperature: 150
• NEMA: NEMA 4
• Pressure - Maximum: 375 psi
• UL Listed: Yes
• UPC: 783863045967
• Volts: 120/250V
