Product Description

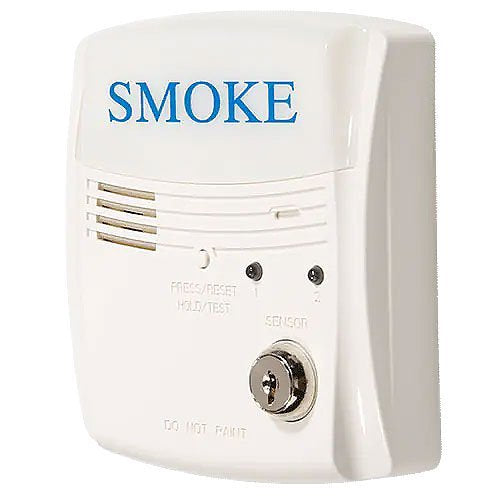

The System Sensor RTS2 is a multi-signaling accessory designed to support InnovairFlex 4-wire conventional duct smoke detectors. This product, manufactured in Mexico, offers a versatile solution for enhancing fire safety systems. It operates on a voltage range of 20 to 29VDC and produces a sound level of 85 dBA.
- Enhances flexibility and functionality of fire alarm systems
- Supports multiple duct smoke detectors
- Key switch for sensor selection and sensitivity readings
Product Highlights
Key features include a key switch that allows for the testing and resetting of connected sensors, as well as the ability to measure sensitivity with the use of a separately sold SENS-RDR reader. The unit does not include a strobe light but maintains high functionality with available add-on options.
Product Information
Standard Information
-
Compatible Devices: System Sensor InnovairFlex duct smoke detectors
-
Application: Suitable for commercial, industrial, and healthcare settings
Technical Specifications
-
Power Supply: 20 to 29V DC
-
Sound Level: 85 dBA
-
Dimensions: Width 4.8 inches, Height 5.3 inches, Depth 1.6 inches
-
Wire Gauge: 14 to 22 AWG
