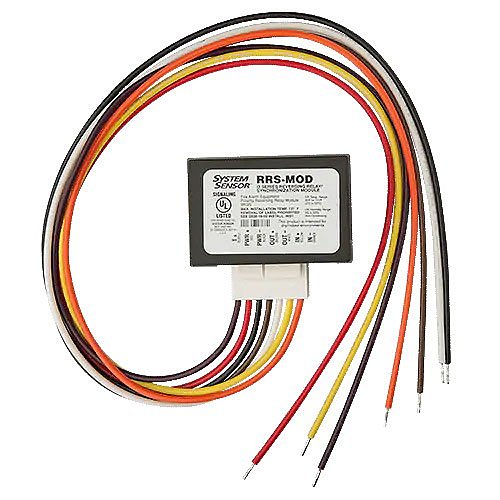

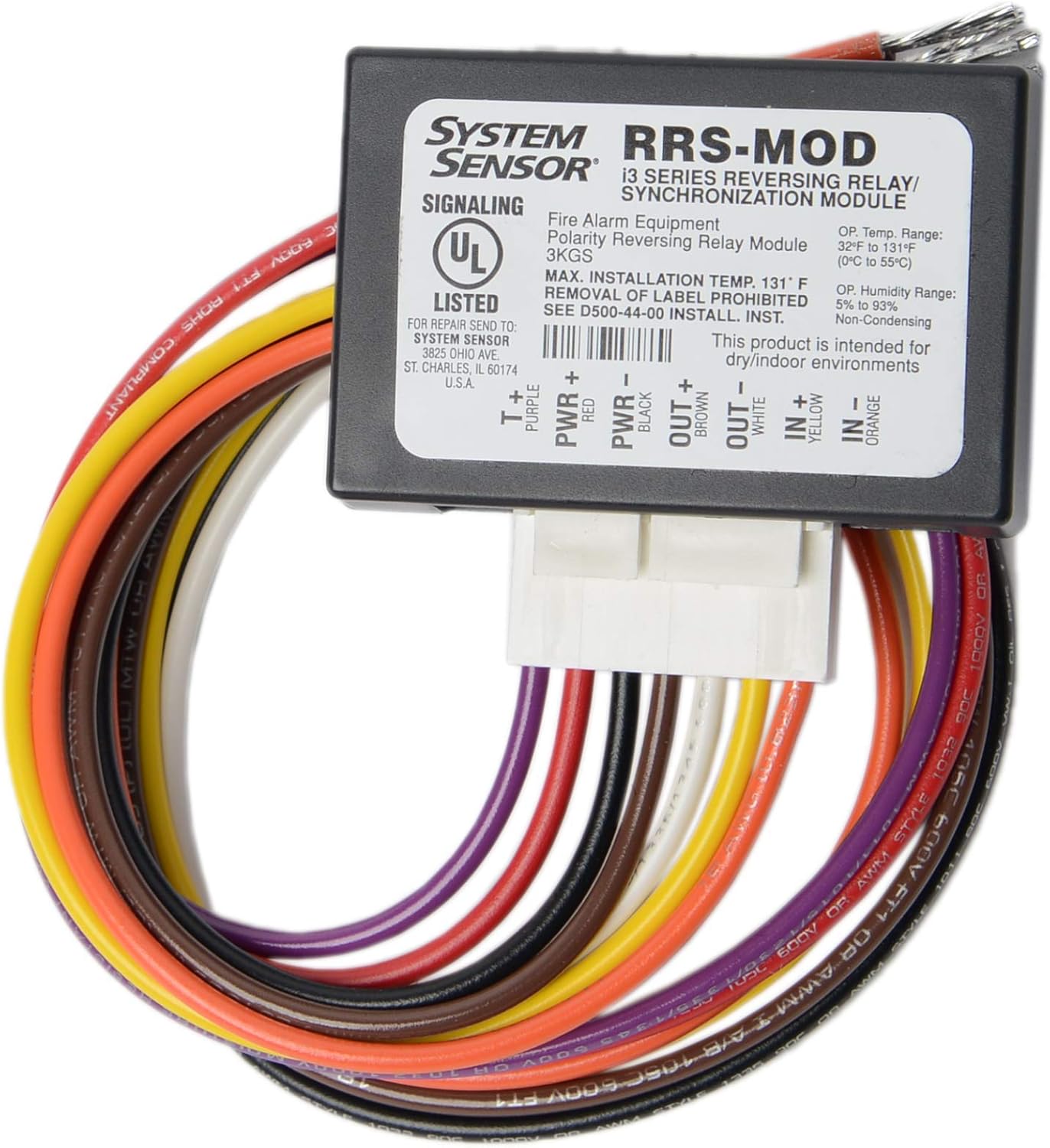

System Sensor RRS-MOD Reversing Relay/Synchronization Module for i3 Series Detectors

Product Description

The System Sensor RRS-MOD Reversing Relay/Synchronization Module is an essential device designed to boost the functionality of i3 Series detectors equipped with sounders. This module is ideal for enhancing your fire alarm system's response and synchronization.

• Ensures seamless operation with both 2- and 4-wire i3 Series detectors.
• Facilitates quick installation via Velcro attachment and color-coded wires.
• Supports various alarm configurations with its field-selectable switch.

Product Highlights

Optimized for use across different system configurations, the RRS-MOD can handle 12 V and 24 V setups efficiently. It activates and synchronizes i3 sounders to emit clear, coherent alarm signals across the loop.

Product Information

Standard Information

• Brand: System Sensor
• Compatibility: 2-Wire and 4-Wire i3 Detectors

Technical Specifications

• Operating Voltage: 12 V and 24 V
• Sounders Activation: Supports coded and continuous signals
• Installation: Velcro attachment, Quick-connect harness
• Dimensions: Width: 10.5 inches, Depth: 1 inch, Height: 10.5 inches
