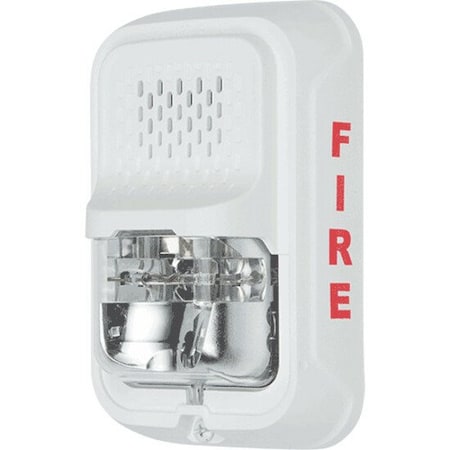

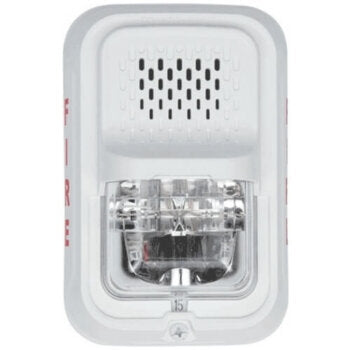

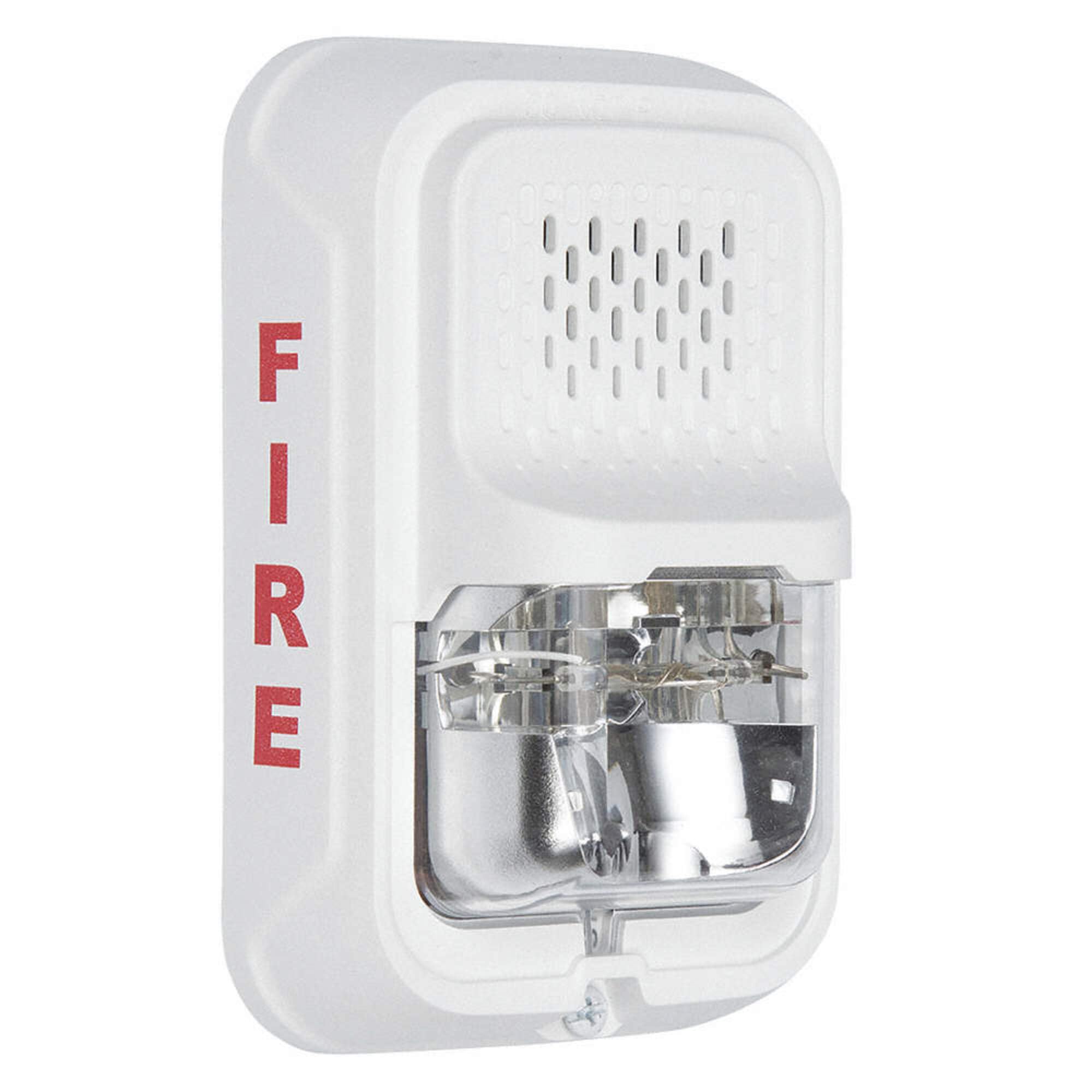

System Sensor P2GWL horn strobe compact indoor 12/24 volt

Product Description

The System Sensor P2GWL is a compact, indoor horn strobe designed for 12/24 volt operation. This device features updated modern aesthetics and a plug-in design for minimal intrusion into the back box. It is constructed to be tamper-resistant and allows automatic selection of 12 or 24 volt operation at 15 and 30 candela.

• Updated Modern Aesthetics
• Small Profile Devices For Horns And Horn Strobes
• Plug-In Design With Minimal Intrusion Into The Back Box

Product Highlights

Compact horn strobe with plug-in design and automatic voltage selection for easy installation and broad application.

Product Information

Standard Information

• Brand: System Sensor
• Manufacturer Part Number: P2GWL
• Country of Origin: Mexico

Technical Specifications

• Device Type: HORN / STROBE
• UNSPSC Code: 46171600
• Finish: White
• Mounting: Wall Mounting
• Peak Output (dBA): 90
• Flash (Candela): 15/185
• Standby Current (uA): 0
• Ambient Temp. Limits (F): 32 to 120 Degrees
• Alarm State (mA): 44 to 326
• Humidity Range (% RH): 10 to 93
• Standby State (mA): 0
• Voltage: 12/24VDC
• Standards: UL Listed, CSFM, FM
• Includes: Mounting Plate
• For Use With: Fire Alarm Panel
• Product Type: Compact Horn Strobe
• Package Quantity: 1
• Country of Origin (subject to change): Mexico
• Color: White
• Lens Color: Clear
• Marking: FIRE
• Series: L-Series: Notification Appliances
• Brand: System Sensor
• Production Status: Active
