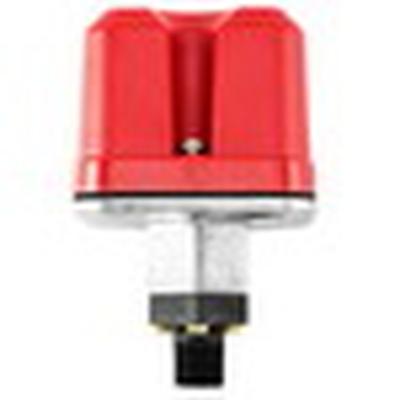

System Sensor EPS101 PRESSURE SWITCH ALARM 1SPDT

Product Description

The System Sensor EPS101 is an alarm pressure switch designed for reliable pressure monitoring in fire safety applications. This switch has a range from four to twenty PSI and can handle an operating pressure of up to three hundred PSI.

• Contact configuration: SPDT
• Temperature rating: works in conditions from negative forty to one hundred sixty degrees Fahrenheit
• Meets UL, LPCB, VDS, and FM certification standards

Product Highlights

This switch is essential for fire monitoring and alarm systems, ensuring immediate response to pressure changes.

Product Information

Standard Information

• Brand: System Sensor
• MPN: EPS101

Technical Specifications

• Operating Pressure: 300 PSI
• Pressure Range: 4 - 20 PSI
• Differential Pressure: Approximately 3 PSI throughout range
• Contact Rating: 10 A, 1/2 HP at 125/250 VAC
• Temperature Rating: -40 to 160 degrees Fahrenheit
• Pressure Connection: 1/2 inch MNPT glass reinforced nylon
• Enclosure: UL 4X, NEMA Type 4
• Dimensions: Length 4-1/4 inches, Width 3.325 inches, Height 5.12 inches
• Weight: 1.200 LB
