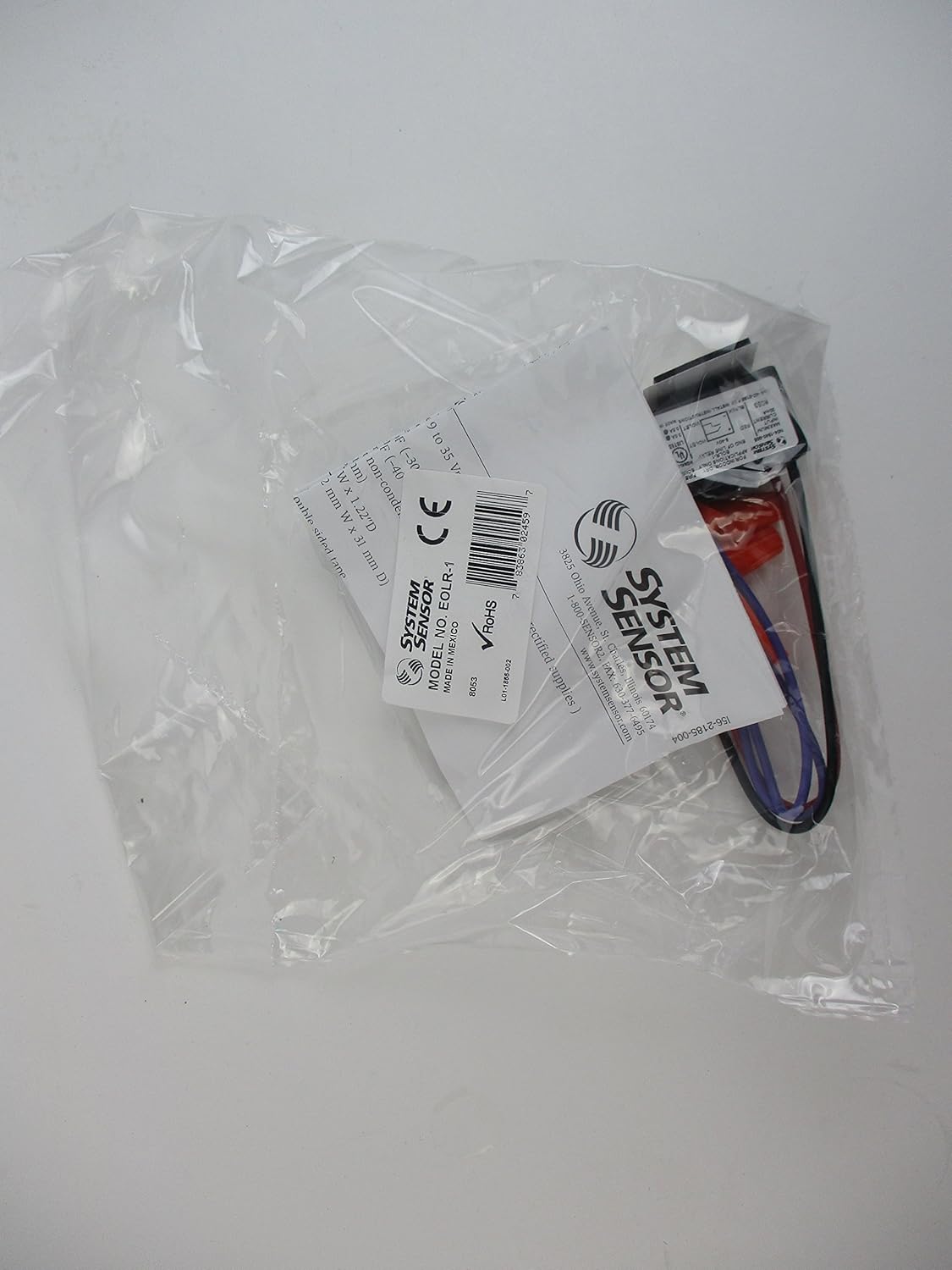

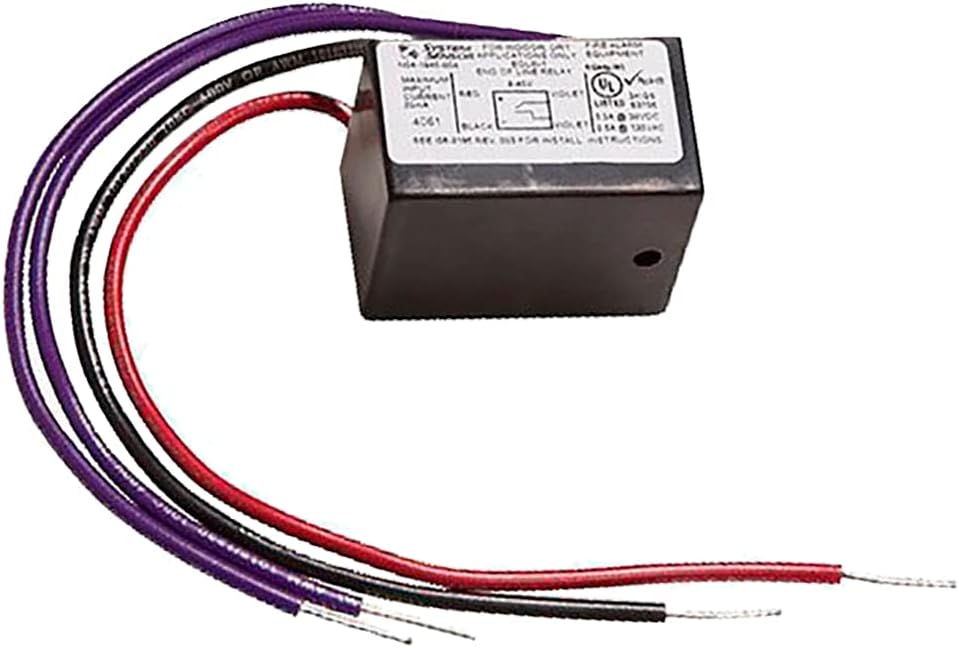

System Sensor EOLR-1 End-of-Line Epoxy Encapsulated SPST Relay

Product Description

The System Sensor EOLR-1 is a specialized end-of-line epoxy encapsulated SPST relay designed for reliable operation in fire safety systems. Manufactured by Honeywell International, it ensures high-current switching capabilities across a variety of applications including fan and damper control, door control, and air handling unit controls.

• Epoxy encapsulated for enhanced durability and environmental protection
• Supports multi-voltage operation from 9 to 40 VDC
• Activates in high humidity conditions from 10 to 93% RH

Product Highlights

This relay, identifiable by its SPST configuration, is designed to be a robust solution for interfacing and supervisory needs in fire alarm systems. It's encapsulated in epoxy, ensuring it can operate in varied environmental conditions without failure.

Product Information

Standard Information

• Brand: System Sensor
• Manufacturer: Honeywell International, Inc

Technical Specifications

• Contact Type: SPST
• Contact Ratings: 120 VAC: 0.5 A max. (resistive load); 30 VDC: 3 A max. (resistive load)
• Wire Length: 8 inches minimum
• Operating Voltage: 9 to 40 VDC
