System Sensor D4120 4-Wire Photoelectric Low-Flow Duct Smoke Detector 24VDC/120VAC Replaces DH100ACDCLP

Product Description

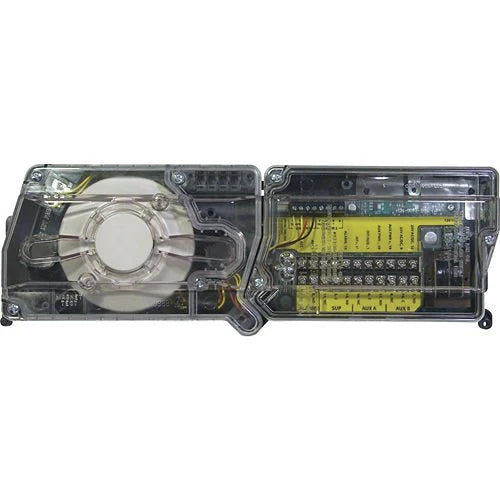

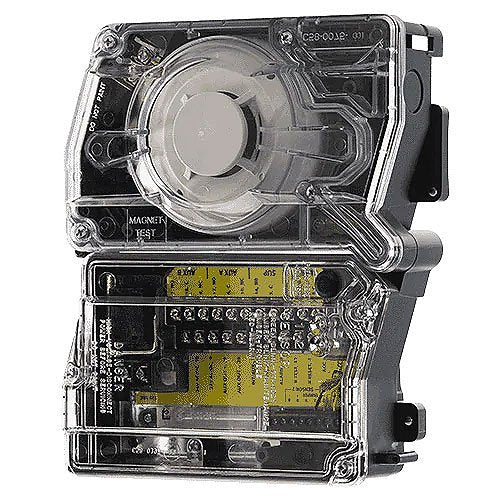

The System Sensor D4120 is a 4-wire photoelectric duct smoke detector designed for challenging conditions. It senses smoke within air ducts using a pivoting housing compatible with both round and rectangular ducts. It operates effectively even with airflow speeds between 100 and 4000 feet per minute, temperatures from -4 to 158 degrees Fahrenheit, and humidity ranges from 0 to 95 percent (non-condensing). The detector's plug-in sensor head offers improved false alarm immunity and easy installation, testing, and maintenance.

• Pivoting housing for various duct types
• Effective in extreme conditions
• Easy installation and maintenance

Product Highlights

This detector's features include a plug-in sensor head for easier maintenance and false alarm immunity, a cover design that isolates the sensor head from the low-flow feature, ample wiring space, and tool-free installation for the patented sampling tube. An interconnect feature allows up to 50 interconnected detectors to relay information. High contrast terminal designations make wiring straightforward, and built-in short circuit protection prevents damage during installation.

Product Information

Standard Information

• Brand: System Sensor
• Manufacturer: Honeywell International, Inc
• Model Number: D4120

Technical Specifications

• Power Source: 24V AC/DC or 120V AC
• Operating Temperature: -4 to 158 degrees Fahrenheit
• Humidity Range: 0% to 95% non-condensing
• Air Velocity: 100 to 4000 ft/min
• Dimensions: 14.38 inches in length, 5 inches in width, 2.5 inches in depth
• Weight: 2.5 lbs
• Sensing Technology: Photoelectric
• Approvals: UL Listed
