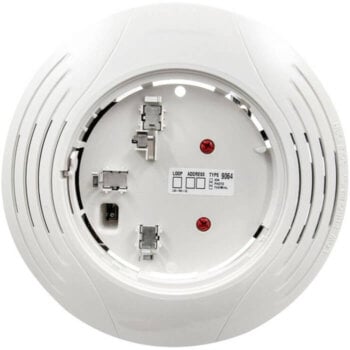

System Sensor b200s-lf-wh Addressable Sounder Base 520 Hz

Product Description

The SYSTEM SENSOR b200s-lf-wh is an intelligent addressable sounder base designed for use with addressable detector heads in fire alarm systems. It generates a low-frequency tone at approximately 520 Hz, a range demonstrated to be more effective at waking individuals in sleeping areas compared to standard high-frequency devices. The unit weighs 0.2 pounds and measures 1.60 inches by 6.85 inches by 6.85 inches. Licensed fire alarm technicians and life safety contractors install this base as part of an addressable detection system in both commercial and residential applications. It meets or exceeds UL268 and UL464 requirements.

The b200s-lf-wh is suited for residential and commercial fire alarm installations where low-frequency audible notification is required, particularly in sleeping areas. It supports multiple tone patterns, including Continuous, Temporal 3, March Time, and Temporal 4, giving system designers flexibility to meet site-specific notification requirements. The Temporal 3 pattern satisfies the NFPA 72 three-pulse fire alarm signal requirement for commercial and residential use. The Temporal 4 pattern also satisfies UL268 and UL2075 requirements as well as the private mode setting of UL 464.

Key Features

• Low-frequency 520 Hz tone output shown to be more effective for waking sleeping occupants
• Supports ANSI Temporal 3, Temporal 4, Continuous, and March Time tone patterns
• Meets or exceeds UL268, UL464, and UL2075 listing requirements
• Temporal 4 pattern satisfies UL 464 private mode setting
• Designed for use with addressable detector heads in the Select Series Mounting Base platform
• White finish for standard ceiling or wall installations

Compatibility

Designed for use with addressable detector heads as part of an intelligent addressable fire alarm system. Compatible applications include commercial and residential installations requiring NFPA 72-compliant audible notification.

Installation Notes

Installation should be performed by a licensed fire alarm technician in accordance with NFPA 72 and applicable local codes. Disconnect system power and follow the fire alarm control panel manufacturer lockout procedures before removing or installing any detector head or sounder base. Do not apply power until the detector head is fully seated and the base is secured to its mounting surface. Refer to the System Sensor installation manual for wiring configuration and addressable loop connection details.

Technical Specifications

• Tone Frequency: approximately 520 Hz
• Tone Patterns: Continuous, ANSI Temporal 3, March Time, Temporal 4
• Dimensions: 1.60 inches x 6.85 inches x 6.85 inches
• Weight: 0.2 pounds
• Color: White
• Base Type: Sounder
• Certifications: UL268, UL464, UL2075
• Condition: New
• Production Status: Active

Standard Information

• Brand: SYSTEM SENSOR
• Manufacturer Part Number: b200s-lf-wh
