Symmons 9602-p Origins Tub Shower System 2.0 Gpm Chrome

Product Description

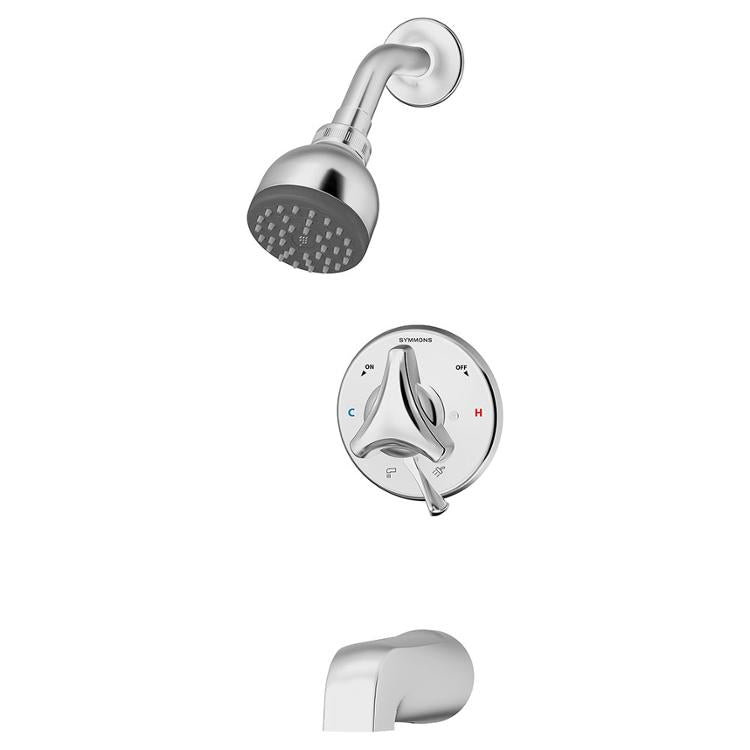

The SYMMONS 9602-p is a complete tub and shower system from the Origins Collection, designed for residential bathroom installations requiring a pressure-balancing valve with integrated diverter control. At its core is a Temptrol pressure-balancing valve that maintains consistent water temperature by compensating for pressure fluctuations elsewhere in the supply line. The system ships with a single-mode 2.0 GPM showerhead finished in polished chrome and a Tri-Star handle with an adjustable stop screw that limits handle rotation to prevent scalding. Licensed plumbers and finish trim contractors are the typical installers for this type of rough-in and trim assembly.

The 9602-p is suited for residential tub and shower enclosures where a single valve controls both temperature and volume, with a secondary integral diverter to redirect flow between the tub spout and showerhead. The polished chrome finish is appropriate for standard residential bath fixtures. The Temptrol valve body is a long-standing platform in commercial hospitality and multifamily construction as well as single-family residential remodel work. No specific model compatibility data beyond the Origins Collection was provided by the supplier.

Key Features

• Temptrol pressure-balancing valve maintains consistent water temperature during supply pressure changes
• Secondary integral diverter routes flow between tub spout and showerhead without a separate valve
• Adjustable stop screw limits handle travel to reduce scalding risk
• Single-mode showerhead rated at 2.0 GPM with easy-clean nozzles
• Polished chrome finish on all exposed trim components

Compatibility

Designed as an OEM Origins Collection tub and shower trim and valve system. No additional compatible model numbers or system families were specified in the supplier data.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply at the branch or main before beginning rough-in or trim work. The pressure-balancing valve requires access to both hot and cold supply lines at standard residential spacing. Verify the adjustable stop screw position after installation to confirm handle travel meets the desired maximum temperature limit before restoring water service.

Technical Specifications

• Flow Rate: 2.0 GPM (7.6 L/min)
• Valve Type: Temptrol Pressure-Balancing
• Diverter: Secondary integral diverter
• Showerhead Modes: 1
• Handle Style: Tri-Star with adjustable stop screw
• Finish: Polished Chrome

Standard Information

• Brand: SYMMONS
• Manufacturer Part Number: 9602-p
