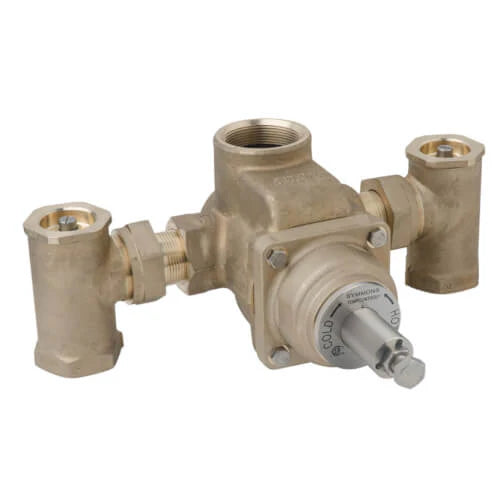

Symmons 7-900 TempControl Thermostatic Mixing Valve 1-1/2 NPT x 1-1/2 NPT

Product Description

Symmons 7-900 is a thermostatic mixing valve designed to ensure precise water temperature control. This product is made from lead-free brass, bronze, and stainless steel, meeting federal lead-free standards. It features a tamper-resistant hex bolt to prevent unwanted temperature changes. The 7-900 model is compatible with previous Symmons models, making it easy to replace.

• Temperature adjustment range is within five degrees of ambient water temperature up to one hundred fifty degrees Fahrenheit.
• Cartridge unit is easily removable for maintenance.
• Integrated check stops are included to prevent thermal bleeding and assist with water shut-off.

Product Highlights

This mixing valve provides optimal performance in various applications requiring temperature control, such as in hospitals and schools where hot water safety is critical.

Product Information

Standard Information

• Brand: Symmons
• MPN: 7-900

Technical Specifications

• Item Name: Thermostatic Mixing Valve
• Connection Size: 1-1/2 x 1-1/2 in
• Connection Type: FNPT
• Flow Rate: 0.5 gpm Minimum, 104 gpm at 45 psi
• Height: 11-3/4 in
• Length: 11-1/2 in
• Width: 5-7/16 in
• Pressure Rating: 125 psi
• Temperature Rating: 70 - 150 deg F
• Series: 7
• Sub Brand: TempControl
