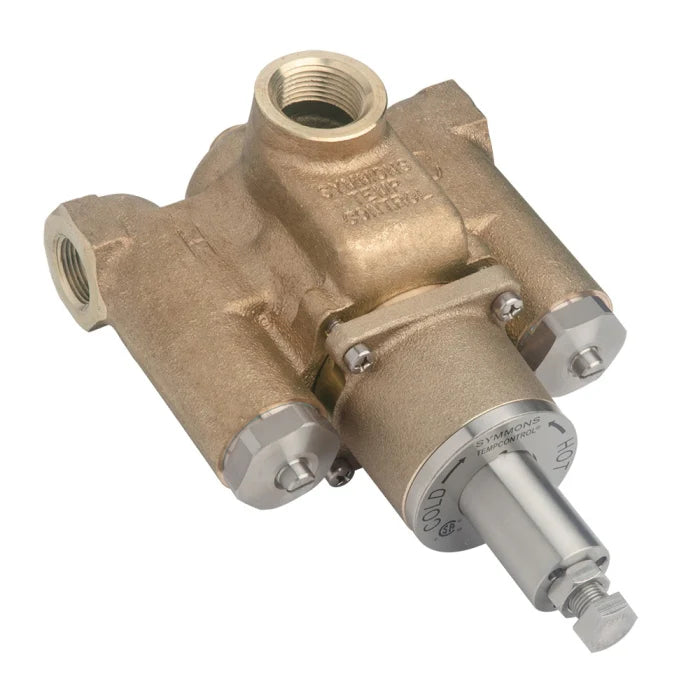

Symmons 7-700 TempControl Thermostatic Mixing Valve Brass

Product Description

The Symmons 7-700 TempControl Thermostatic Mixing Valve is a top-tier plumbing component designed to regulate water temperature precisely. Constructed from robust lead-free brass, this valve ensures a safe, consistent output temperature and complies with federal safety regulations.

• Lead-free brass construction for safe, durable operation.
• Backwards compatible with 5-500 and 6-500 series models.
• Integrated features for improved functionality: turbulator, stainless steel checkstops.

Product Highlights

Specially engineered to provide precise control over water temperature, the Symmons 7-700 enhances safety and usability in environments such as hospitals and schools. It features an easily replaceable cartridge system that minimizes maintenance time and costs.

Product Information

Standard Information

• Brand: Symmons
• Model: 7-700

Technical Specifications

• Material: Brass
• Connection Size: 1-1/4 x 1-1/2 inches
• Flow Rate: 0.5 gpm Minimum, 77 gpm at 45 psi
• Temperature Range: 70 to 150 degrees Fahrenheit
• Pressure Rating: 125 psi
• Compliance: ASME A112.18.1, ASSE 1017, CSA B125.1, B125.3, NSF 61-9, 372
