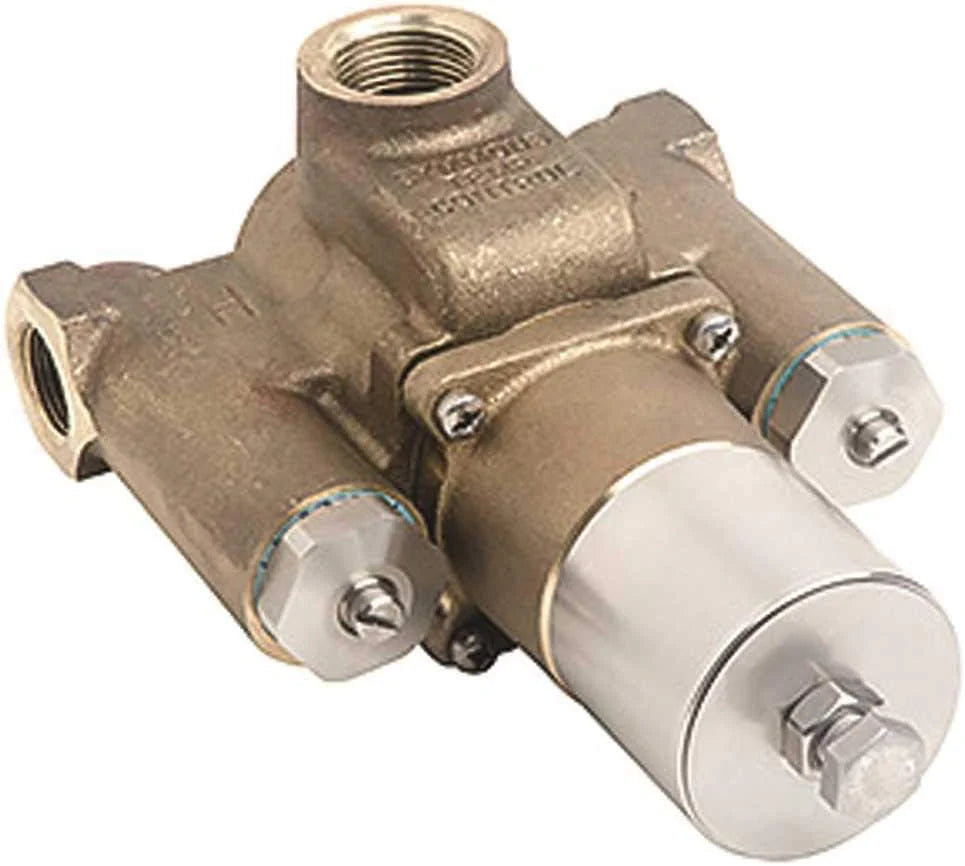

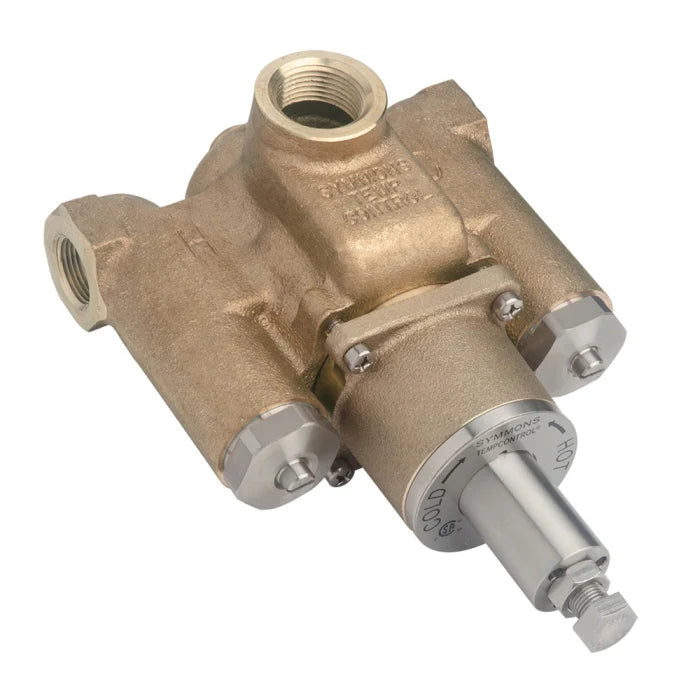

Symmons 7-500 TempControl Thermostatic Mixing Valve Lead-Free Brass Bronze and Stainless Steel 1 x 1-1/4 in FNPT

Product Description

The Symmons 7-500 TempControl Thermostatic Mixing Valve is engineered for superior temperature regulation, combining robust brass, bronze, and stainless steel materials. This valve ensures precise temperature control with minimal maintenance required.

• Lead-free construction meets federal standards
• Compatible with previous TempControl series for easy upgrade
• Features integrated checkstops for enhanced safety

Product Highlights

This thermostatic mixing valve is designed for durability and efficiency in commercial and industrial settings, ensuring a consistent water temperature and preventing scalding. The valve's design focuses water on the thermal motor for rapid response to changes in inlet temperature, allowing for fine adjustments.

Product Information

Standard Information

• Material: Lead-Free Brass, Bronze, Stainless Steel
• Temperature control: Adjustable from 70 to 150 degrees Fahrenheit

Technical Specifications

• Connection size: 1 x 1-1/4 inches FNPT
• Flow rate: 0.5 GPM minimum, 70 GPM at 45 PSI
• Dimensions: Length 7-11/16 inches, Width 4-7/8 inches, Height 9-11/16 inches
• Pressure rating: 125 PSI
• Certifications: ASME A112.18.1, ASSE 1017, CSA B125.1, NSF 61-9, NSF 372
