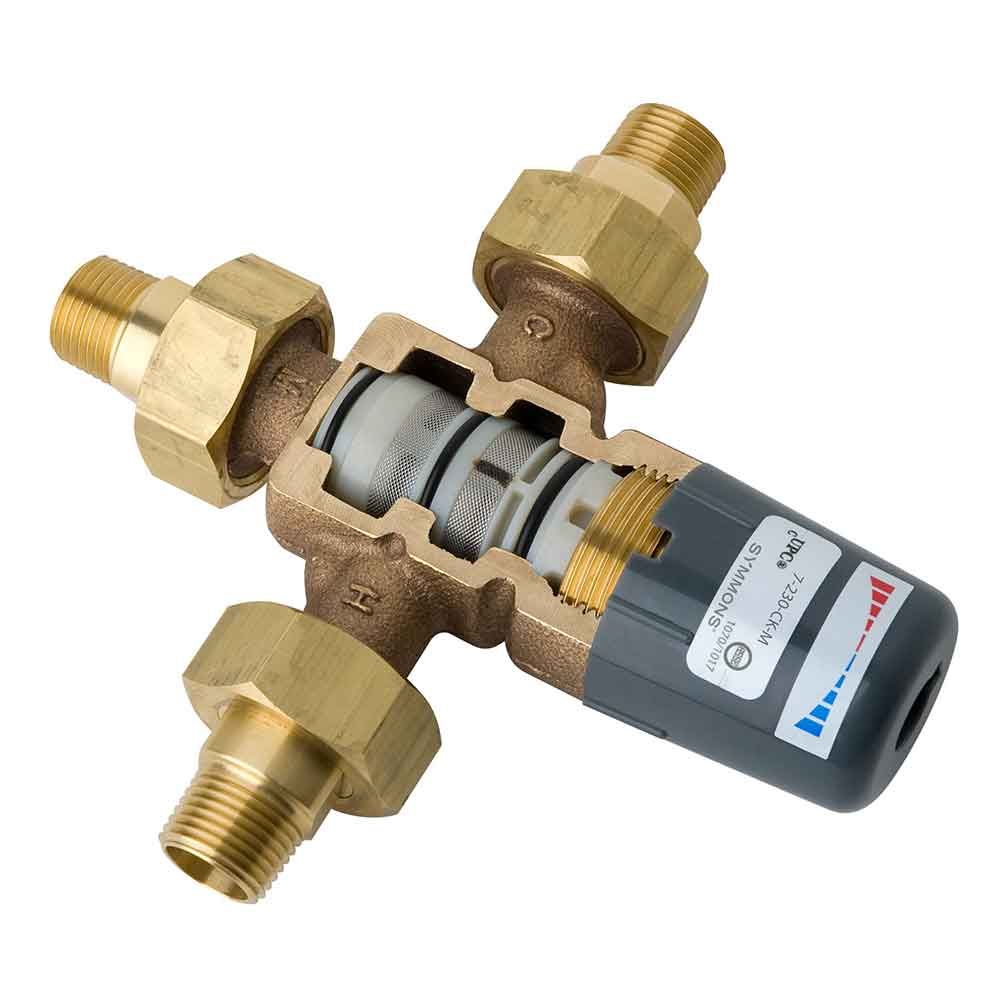

Symmons 7-230-CK-M - 3/4 x 3/4 MPT Thermostatic Mixing Valve

Product Description

The Symmons 7-230-CK-M is a thermostatic mixing valve designed for tempered domestic potable water applications. This valve features a thermal motor that allows for quick adjustments to variations in inlet temperature. The unit also includes a tamper-resistant temperature control handle and protective cap, ensuring safe and reliable operation. Additionally, checks and strainers are built into the inlet connections for enhanced performance. With a capability of providing twelve gallons per minute at thirty psi, this valve is suitable for high-demand situations.

• Thermal motor reacts swiftly to changes in inlet temperature
• Tamper-resistant handle for secure operation
• Inlet connections include checks and strainers for performance

Product Highlights

This thermostatic mixing valve is ideal for applications needing consistent and safe water temperature management.

Product Information

Standard Information

• Brand: Symmons
• MPN: 7-230-CK-M

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: MPT
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• Minimum Flow GPM: 0.5 GPM
• Minimum Outlet Temperature: 70 degrees Fahrenheit
• Maximum Outlet Temperature: 150 degrees Fahrenheit
• Max Pressure: 125 psi
• Point-of-Use Certified: No
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Weight: 3.10 lbs
