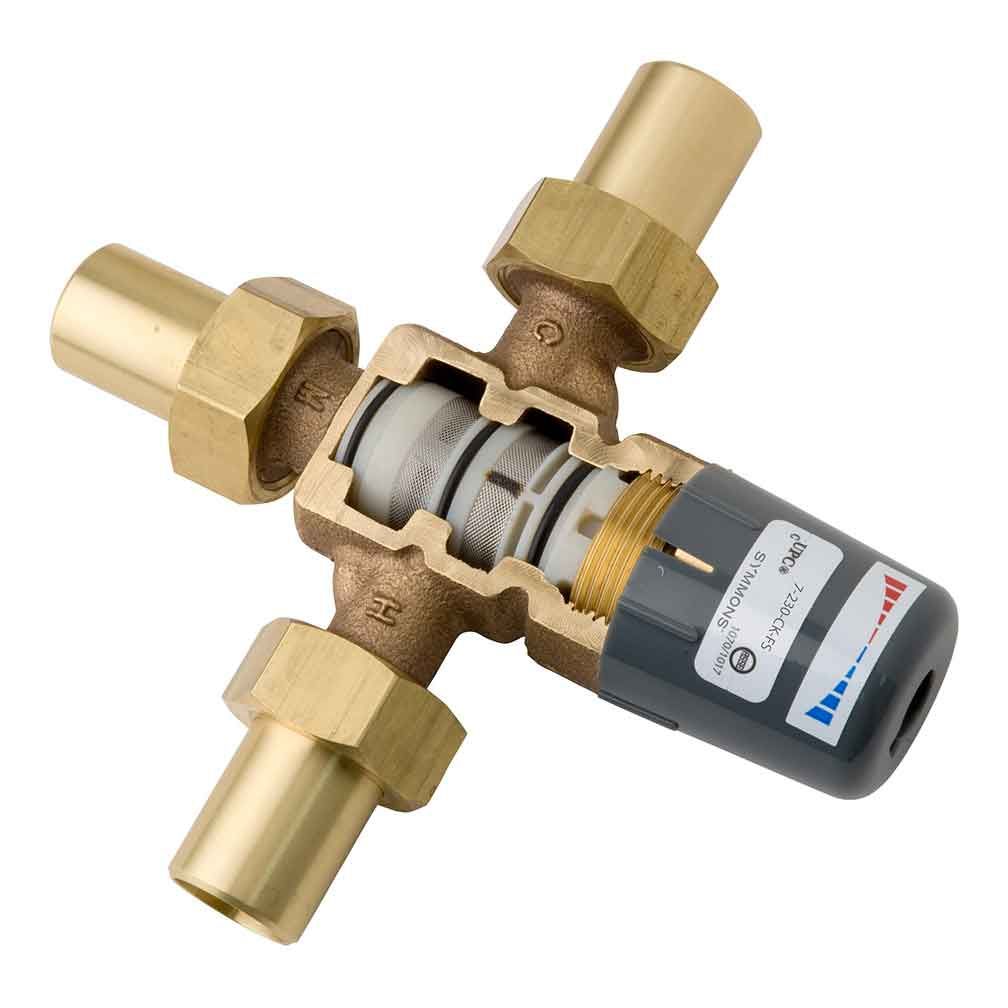

Symmons 7-230-CK-FS - 3/4 x 3/4 Sweat Thermostatic Mixing Valve

Product Description

Symmons 7-230-CK-FS is a thermostatic mixing valve designed for tempered domestic potable water applications. This valve uses a thermal motor to quickly adjust to inlet temperature changes. It includes tamper-resistant controls and features checks and strainers on the inlets to ensure optimal performance.

• Provides up to twelve GPM at thirty psi.
• Constructed with durable brass material.
• Compatible with three-quarter inch connections.

Product Highlights

Reliable temperature control for safe domestic water use.

Product Information

Standard Information

• Brand: Symmons
• MPN: 7-230-CK-FS

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: Sweat
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• Minimum Flow GPM: 0.5 GPM
• Minimum Outlet Temperature: 70 degrees Fahrenheit
• Maximum Outlet Temperature: 150 degrees Fahrenheit
• Max Pressure: 125 psi
• Point-of-Use Certified: No
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Weight: 12.10 lbs
