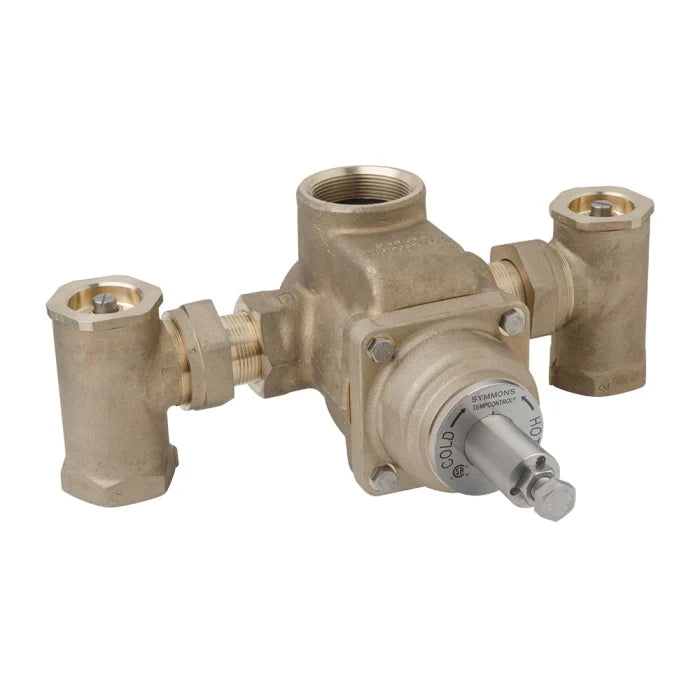

Symmons 7-1000 TempControl Thermostatic Mixing Valve 1-1/2 x 2 in FNPT

Product Description

The Symmons 7-1000 is a lead-free thermostatic mixing valve designed for precise temperature control. This valve is compatible with the previous 6-1000 and 5-1000 series TempControl valves, featuring a 1-1/2 inch by 2 inch FNPT connection. The unit requires minimal maintenance due to its replaceable cartridge design.

• Lead-free, durable construction of brass, bronze, and stainless steel
• Rapid response to temperature changes with integrated thermal motor
• Cartridge unit can be removed quickly for cleaning and inspection

Product Highlights

This unit focuses water towards the thermal motor, ensuring a fast reaction to temperature variations. It also has tamper-resistant features that prevent unwanted adjustments.

Product Information

Standard Information

• Brand: Symmons
• MPN: 7-1000

Technical Specifications

• Connection Size: 1-1/2 x 2 in
• Connection Type: FNPT
• Flow Rate: 0.5 - 13 gpm
• Height: 11-3/8 in
• Length: 14-1/4 in
• Material: Brass
• Pressure Rating: 150 psi
• Series: 7
• Sub Brand: TempControl
• Temperature Rating: 70 - 150 deg F
• Width: 5-7/16 in
• Standards/Certifications: ASME A112.18.1, ASSE 1017, CSA B125.1, B125.3, NSF 61-9 and 372 certified
