Symmons 6-200 Symmons 7-200 TempControl Thermostatic Mixing Valve

Product Description

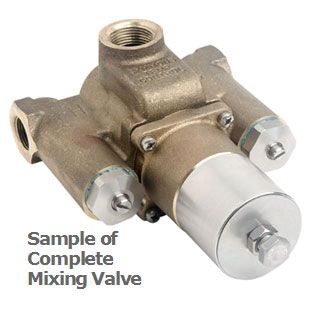

The Symmons TempControl thermostatic mixing valve, model number 6-200, is designed for controlling water temperature. It features three-fourths inch female NPT inlet and outlet connections. The valve includes integral check stops and operates with a minimum flow rate of half a gallon per minute.

• Suitable for use in applications requiring precise temperature control.
• Constructed from durable brass material.
• Automatic compensation for changes in supply line temperature and pressure.

Product Highlights

This thermostatic mixing valve is ideal for use in locations such as hospitals and schools, where maintaining safe water temperatures is essential.

Product Information

Standard Information

• Brand: Symmons
• Model: 6-200

Technical Specifications

• Valve Application: Tempered Domestic Potable Water
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 3/4 inches
• Outlet Connection Size: 3/4 inches
• Minimum Flow GPM: 0.5 GPM
• Minimum Outlet Temperature: 70 degrees Fahrenheit
• Max Pressure: 125 psi
• Point-of-Use Certified: No
• Point-of-Source Certified: Yes
• ASSE Classification: 1017
• Replaces: Symmons 6-200
• Weight: 9.00 pounds
