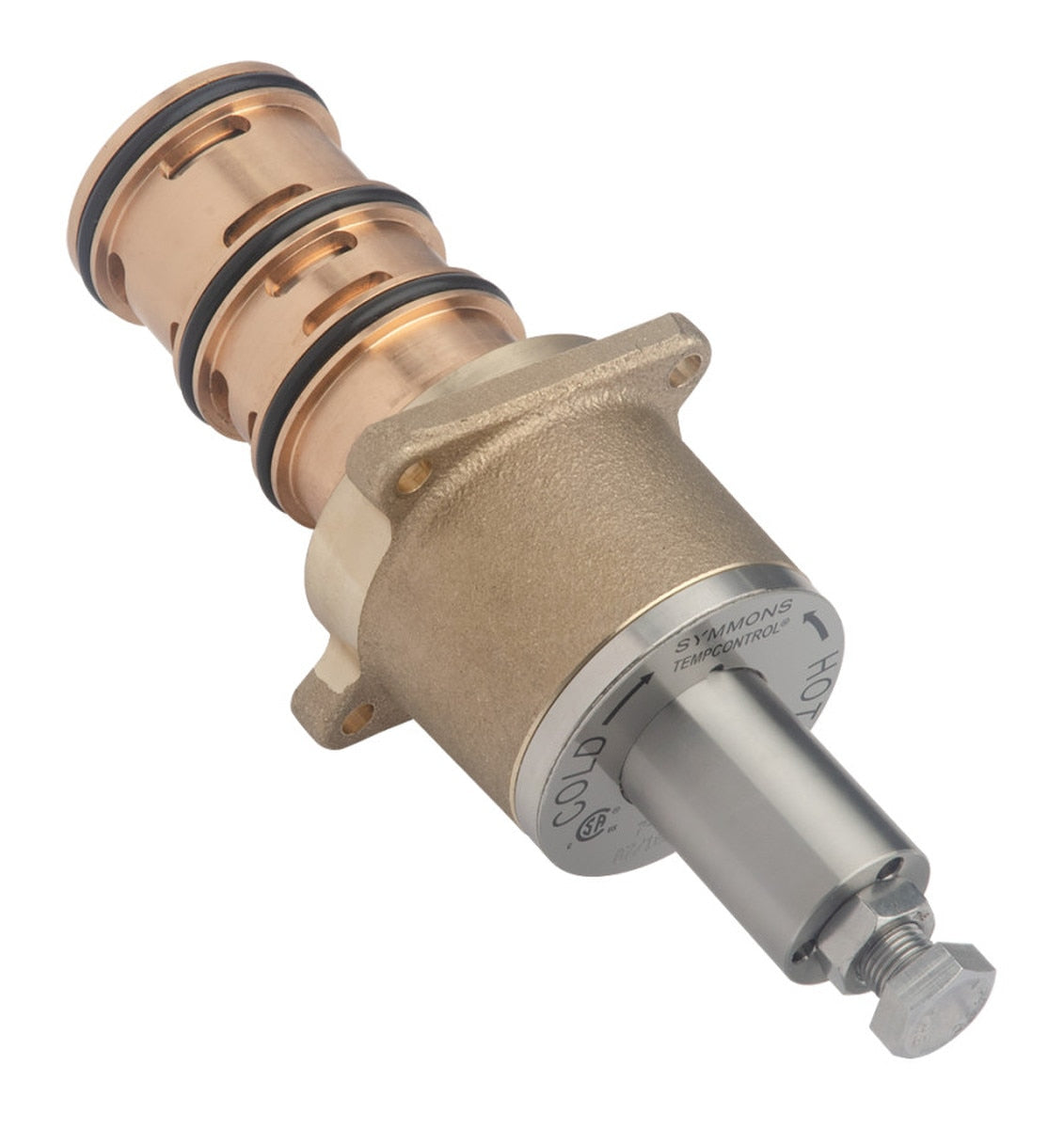

Symmons 5-400NW Thermostatic Mixing Valve Cartridge

Product Description

The SYMMONS 5-400NW is a replacement thermostatic mixing valve cartridge designed for use in Tempcontrol valve assemblies with 3/4-inch inlets and 1-inch outlets. It controls mixed water temperature through a stainless steel piston and thermal motor, maintaining output within a set range of 60 degrees F to 120 degrees F. A Turbulator element is integrated into the design to improve thermal response and mixing efficiency. This cartridge is installed by licensed plumbers performing routine maintenance or system rehabilitation on thermostatic mixing valve installations in both residential and light commercial applications.

This cartridge is suited for Tempcontrol thermostatic valve assemblies requiring a direct OEM-style replacement. It is appropriate for use in domestic hot water systems where scald protection and temperature stabilization are required. The 60 to 120 degrees F operating range covers standard domestic water delivery applications. Plumbing contractors performing valve service or retrofit work on aging Tempcontrol installations will find this cartridge a direct fit for assemblies with 3/4-inch inlets and 1-inch outlets.

Key Features

• Temperature range of 60 degrees F to 120 degrees F for scald-protective domestic water delivery
• Stainless steel piston and thermal motor for durable, corrosion-resistant operation
• Integrated Turbulator element for improved thermal mixing response
• Designed for Tempcontrol valve bodies with 3/4-inch inlets and 1-inch outlets
• Sold individually as a direct replacement cartridge

Compatibility

Designed as a replacement cartridge for SYMMONS Tempcontrol thermostatic mixing valve assemblies with 3/4-inch inlets and 1-inch outlets. Replaces part number 5-400NW. Manufacturer item number 7-400NW is also associated with this cartridge per supplier data.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the hot and cold water supply and relieve system pressure before removing the existing cartridge. Inspect the valve body seat and seals during service and replace any worn components before inserting the new cartridge. Do not exceed the rated temperature range when commissioning the valve after installation.

Technical Specifications

• Temperature Range: 60 degrees F to 120 degrees F
• Inlet Size: 3/4 inches
• Outlet Size: 1 inch
• Piston Material: Stainless Steel
• Weight: 4.41 pounds
• Package Quantity: Each
• UPC: 671256436648

Standard Information

• Brand: SYMMONS
• Manufacturer Part Number: 5-400NW
