Product Description

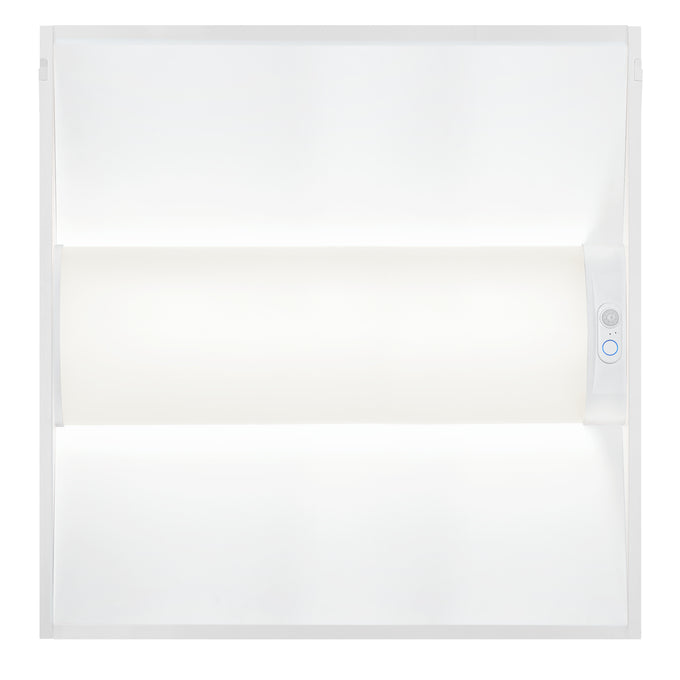

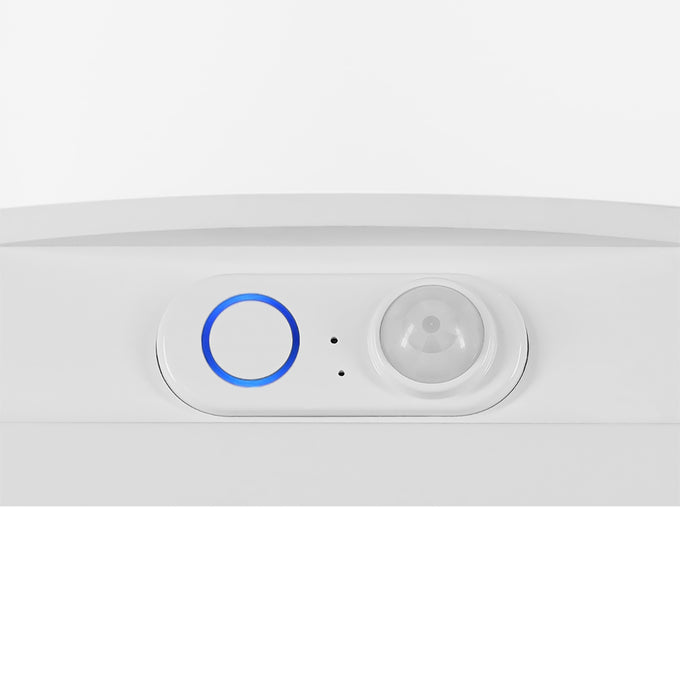

The SYLVANIA RDORKIT7A/S030UNVD8SC8/22/BLE/62572 LED 7A retrofit door kit is a 2x2 troffer with selectable wattage. It operates at 120-277V and features selectable CCT (3000K, 3500K, 4000K, 5000K). This kit is Bluetooth enabled, and motion sensors are sold separately. Ideal for both retrofit and new construction applications.
- Performance Class BLUETOOTH
MESH Enabled Connected Volumetric Troffer
- Selectable CCT: 3000K/3500K/4000K/5000K
- Selectable wattage: 15/20/25/30W
Product Highlights
The Sylvania LED troffer retrofit kit allows for comprehensive fixture control with wireless flexible luminaire grouping, dimming, and scene control.
Product Information
Standard Information
-
Brand: SYLVANIA
-
Manufacturer Part Number: RDORKIT7A/S030UNVD8SC8/22/BLE/62572
Technical Specifications
-
Brand: Sylvania
-
Mfg #: 62572
-
Certifications: cULus, DLC Premium, FCC, RoHS
-
Mounting Type: Recessed
-
Finish: White
-
Watts: 15/20/25/30
-
Lumens: 1905 to 3810
-
Lumens/Watt: 125
-
CRI: 80
-
Input Voltage: 120-277V
-
Dimmable: Yes
-
Dimensions: 2x2
-
Life (hrs): 125,000
-
Order Code: RDORKIT7A/S030UNVD8SC8/22/BLE
-
Warranty: 5 year
-
UPC: 046135625725
-
SKU: SYLVANIA-62572
-
Voltage: 120 to 277
-
Technology: LED
-
Kelvin Temp.: 3000-5000 Selectable
-
UPC Code: #046135625725
-
Color Temperature: 5000K
-
Efficacy: 125 lm/W
-
Maximum Voltage: 120V-277V
-
Product Dimensions: 23.80-in X 23.80-in X 3.10-in
-
Weight: 9.74-lb
-
Nominal Wattage: 15.00/20.00/25.00/30.00 W
-
Nominal voltage: 120.00
277.00 V
-
Power factor: 0.90
-
Total Harmonic Distortion: < 20 %
-
Color Temperature/CCT: 3000/3500/4000/5000 K
-
Color Rendering Index (CRI): > 80
-
Luminaire Type: Retrofit
-
Length: 23.82 in
-
Height: 3.09 in
-
Width: 23.86 in
-
Product weight: 8.66 lb
-
Luminaire Finish: White
-
Housing color: White
-
Housing: Steel
-
Mercury content: 0.0 mg
-
Ambient temperature range: -20...+50 °C
-
Maximum Operating Temperature: 122 °F
-
Minimum Operating Temperature: -4 °F
-
Type of Dimming: 0-10V
-
Mounting: Recessed
-
Indoor/Outdoor: Indoor
-
Replaceable light source: No
-
Average Rated Life (hr): 125000
-
Certification Listing: RoHS; FCC; cULus
-
Replaceable light source (EPREL): Not replaceable
-
Ordering Abbreviation: RDORKIT7A/S030UNVD8SC8/22/BLE
-
Abbrev. With Packaging Info.: RDORKIT7AS030UNVD8SC822BLE 2/CS 2/SKU
-
Family Brand Name: ValueLED
-
Case Qty: 2
-
Case Length (in): 26.614
-
Case Width (in): 25.158
-
Case Depth (in): 5.354
-
Case Cube (ft): 2.075
-
Case Weight (lbs): 19.484
-
Pallet Qty: 32
-
Cases/Pallet: 16
-
AVG_LIFE: 125,000 HR
-
COLOR_TEMP: 3,000 K
-
COLOR_TEMP_2: 3,500 K
-
COLOR_TEMP_3: 4,000 K
-
COLOR_TEMP_4: 5,000 K
-
LUMENS1: 1,905
-
LUMENS2: 2,540
-
LUMENS3: 3,200
-
Manufacturer: LEDVANCE LLC
-
MERCHANDISEBYAPPLICATION: None
-
RATED_LUMENS: 1,905
-
RATED_WATTS: 30.00 W
-
Short Description: SRDORKIT7A/S030UNVD8SC8/22/BLE 62572 RDORKIT7AS030UNVD8SC822BLE 2/CS 1/SKU SYLVANIA
-
TIER_CATEGORY: Value Added
-
VALUE_ADD: YES
-
VOLTAGE: 120.00 - 277.00 V
-
WATTS1: 15.00 W
-
WATTS2: 20.00 W
-
WATTS3: 25.00 W
