Product Description

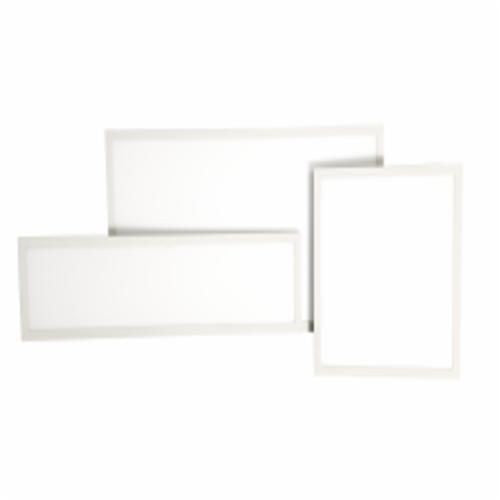

The Sylvania PANELF1A/040UNVD835/24G/WH is a versatile LED edge-lit panel luminaire designed for recessed grid ceiling installation. This luminaire fits seamlessly into tight ceiling spaces and delivers uniform light output with reduced glare, making it ideal for any commercial setting. It serves as a replacement for traditional light fixtures or can be used for new setups in various environments, such as educational institutions, offices, retail stores, and hospitality venues.
- Aluminum housing and white flat PMMA diffuser for durability.
- Features 0-10VDC dimming capabilities for energy efficiency.
- Highly suitable for various applications including educational and retail environments.
Product Highlights
This product combines modern technology with simplicity, providing effective lighting solutions for professional spaces.
Product Information
Standard Information
-
Brand: Sylvania
-
MPN: PANELF1A/040UNVD835/24G/WH
Technical Specifications
-
Housing Material: Aluminum
-
Lamp Type: LED
-
Lens Type: White Flat PMMA Diffuser
-
Lumens: 4200 Lumens
-
Mounting Type: Ceiling
-
Application: Educational, Office, Retail, Hospitality
-
Standards & Approvals: ARRA, Buy American Act, RoHS Compliant, cETLus Listed to UL 1598, FCC Approved, DLC Listed
-
Dimensions: 47.8 inches L x 23.82 inches W x 1.71 inches H
-
Average Life: 50000 hours
-
Ballast Type: LED Driver
-
Ceiling Opening: 15/16 inches, 9/16 inches
-
Color Rendering Index (CRI): 80 or higher
-
Color Temperature: 3500K (Neutral White)
-
Power Consumption: 40 Watts
-
Color: White
-
Dimmable: Yes
-
Input Voltage: 120 to 277 VAC
