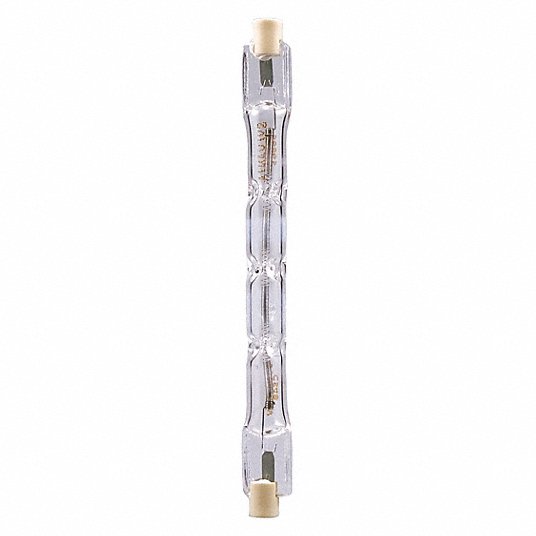

Sylvania 500T3Q/CL(FCL)-120V/58996 Halogen Lamp 500 W

Product Description

The SYLVANIA 500T3Q/CL(FCL)-120V/58996 is a halogen lamp operating at 120 V with 500 W power. This double-ended T3 quartz clear finish lamp features an R7s base. It is suitable for various lighting applications, including those using timers. A protective shield should be used to prevent shattering and UV radiation exposure.

• Double Ended Halogen Lamp
• Ecologic
• Rough Service

Product Highlights

The SYLVANIA 500T3Q/CL(FCL)-120V/58996 halogen lamp provides 500W of power and is suitable for a variety of lighting applications.

Product Information

Standard Information

• Brand: SYLVANIA
• Manufacturer Part Number: 500T3Q/CL(FCL)-120V/58996
• Country of Origin: China

Technical Specifications

• Base: R7S / RSC, RECESSED SINGLE CONTACT
• Type: Halogen
• Brand: LEDVANCE
• Finish: Clear
• Voltage: 120V AC
• Wattage: 500 Watt
• Sub Brand: Double End
• Bulb Shape: T3
• Start Type: Instant
• Bulb: T3
• Ecologic: YES
• Filament: CC8 / COILED COIL AXIAL FILAMENT
• ANSI Code: FCL
• Lamp Finish: Clear
• Diameter (in): 0.375
• Diameter (mm): 9.53
• Family Brand Name: Double End
• Nominal Voltage (V): 120.00
• Nominal Wattage (W): 500.00
• Average Rated Life (hr): 2000
• Maximum Overall Length - MOL (in): 4.688
• Maximum Overall Length - MOL (mm): 119
• Shape: T3
• Lamp Base: R7s (Recessed Single Contact)
• Rated Life: 2000 hours
• Initial Lumens: 8750
• Watts: 500 W
• Volts: 120 V
• Maximum Overall Length - MOL: 4.69in (119.10mm)
• Diameter: 0.38in (9.50mm)
• Family Name: Sylvania Tungsten Halogen Double Ended
• Description: FCL
• Ordering Code: 500T3Q/CL
• UPC: 046135589966
• Average Life: 2000 hr
• Color: Warm White
• Designation: 500T3Q/CL(FCL) 120VAC
• Lamp Base Type: R7 Recessed Single Contact
• Lamp Type: Double End Quartz Tubular
• Voltage Rating: 120 VAC
• Manufacturer Part Number: 500T3Q/CL(FCL) 120V
• Bulb Base Type: Recessed Single Contact (R7s)
• Bulb Beam Angle: 360
• Bulb Diameter: 3/8 in
• Bulb Housing: Glass
• Dimmable: Yes
• Light Color: White
• Light Technology: Halogen
• Overall Length: 4-3/4 in
• Shatter-Resistant: No
• Standards: FCL Certified
• Trade Number: 500T3Q/CL(FCL) 120V
• Voltage Group: LINE VOLTAGE
• Life: 2000H
• BT Part#: OS500T3QCLRP
• BT Description: 500T3Q/CL(FCL)-120V #58996
• Mfg Ordering Code: 58996
• Trade Name: ECOLOGIC
• Mfg: SYLVANIA
• Mfg Prod Description: 500T3Q/CL(FCL)-120V #58996
• ANSI: FCL
• Tariff Code: 8539.21.40.80
• BT Ordering Code: 0000950
• Diameter (mm/"): 0.375"
• Overall Length (mm/"): 4.69"
• Ends: DOUBLE-ENDED
• Product Type: LAMP / BULB
• Technology: HALOGEN
