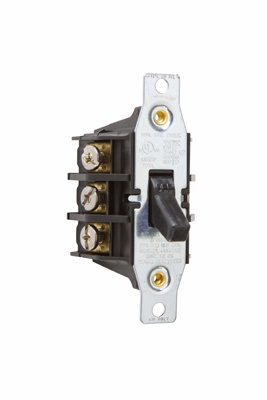

Pass & Seymour 7803-MD Manual Motor Controller, 3-Pole, 3-Phase, 30A, 600V, 20HP

Product Description

The Pass & Seymour 7803-MD is a three-pole, three-phase AC manual motor controller designed for effective motor control. This unit can function as a motor disconnect and supports a maximum load of thirty amps at six hundred volts. It is suitable for commercial and industrial applications and complies with UL508 and cULus standards.

• High horsepower rating of twenty HP.
• Gull-wing shaped brass terminal pressure clamps for secure connections.
• Constructed from glass reinforced thermoplastic for durability.

Product Highlights

This manual control switch offers reliable performance in various industrial settings, ensuring safety and efficiency in motor control operations.

Product Information

Standard Information

• Brand: Pass & Seymour
• MPN: 7803-MD

Technical Specifications

• Amperage: 30 Amp
• Operating Cycles: 50000
• Voltage: 600 Volt
• Actuator: Toggle Switch
• Connection Type: Back and Side Wire
• Number of Poles: 3 Pole
• Temperature Rating: -40 to 75 degrees C
• Country of Origin: Mexico
