SWITCH 15 AMP 250V 125V 347717-1 for Vulcan Hart 347717-1

Product Description

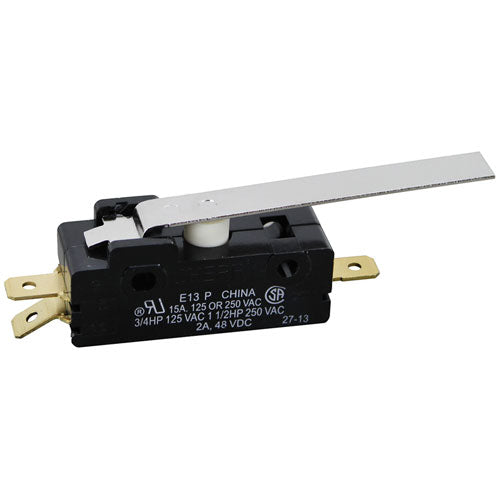

This item for Vulcan Hart 347717-1 is a momentary door micro lever switch. It is suitable for various commercial kitchen equipment, including Hobart and Wolf ovens, specifically designed for the model CN85 and KCH series. This switch is essential for controlling the operation of ovens and other devices requiring a reliable switching mechanism.

• Momentary action switch for precise control
• Rated for fifteen amps at 250 volts and one hundred twenty-five volts
• Compatible with Hobart and Wolf ovens

Product Highlights

This switch features a single pole single throw (SPST) design and connects using quarter-inch tab terminals. Its lever measures two and three-eighths inches, making it suitable for tight installation spaces.

Product Information

Standard Information

• Dimensions: three point four inches long, zero point six inches wide, one inch high
• Weight: zero point one pounds

Technical Specifications

• Type: Momentary lever switch
• Interrupt Rating: fifteen amps
• Voltage: 250 volts AC / 125 volts AC
• Horsepower Rating: three-fourths horsepower
• Connector: Quarter inch tab terminals (three)
• Lever Length: two and three-eighths inches
