SWITCH 125/250V 15 AMP VH843811 for Vulcan Hart VH843811

Product Description

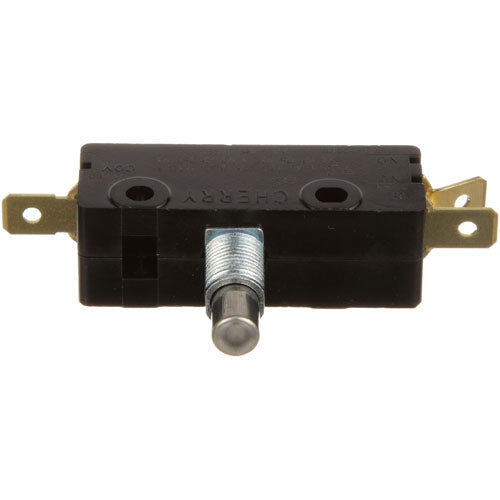

This item for Vulcan Hart MPN VH843811 is a push button micro switch designed for efficient operation in various appliances. It operates at a voltage range of one hundred twenty-five to two hundred fifty volts and can handle up to fifteen amps. This component is suitable for applications requiring reliable ON/OFF functionality.

• Push button micro switch
• Voltage: 125/250V
• Current rating: 15 AMP

Product Highlights

The switch features three quarter-inch terminals for secure connections and includes a plunger with a stem mechanism for easy operation.

Product Information

Standard Information

• Product Weight: 0.1 lbs
• Product Dimensions: 2.5 in x 0.7 in x 1.5 in

Technical Specifications

• Type: Push button micro switch
• Voltage Rating: 125/250V
• Current Rating: 15 AMP
• Terminals: 3EA 1/4 tab terminals
• Plunger Type: Plunger with stem
• Hex Nut Required: Use hex nut 3/8-32THD #26-3157
