SWITCH 125/250V 15 AMP ON/OFF (SIZE) SOU1167337 for Southbend SOU1167337

Product Description

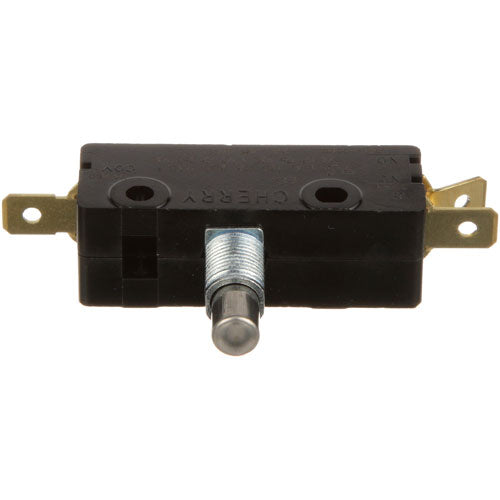

This item for Southbend MPN SOU1167337 is a push button micro switch designed for on and off control in various applications. It operates at 125/250 volts and supports a maximum of 15 amps. The switch features three quarter-inch tab terminals and a plunger with a stem, which allows for easy operation. Note that the hex nut is not included and can be purchased separately.

• Push button micro switch
• 125/250V, 15 amp rating
• Includes three quarter-tab terminals

Product Highlights

This switch is suitable for appliances requiring reliable on/off functionality.

Product Information

Standard Information

• Product Notes: This switch is compatible with Hobart and Vulcan models.

Technical Specifications

• Voltage: 125/250V
• Current: 15 AMP
• Dimensions: 2.5 inches (length) x 0.7 inches (width) x 1.5 inches (height)
• Terminals: 3 EA 1/4 tab terminals
• Plunger Type: With stem
• Hex Nut Requirement: Requires hex nut #26-3157 (3/8-32 thread)
