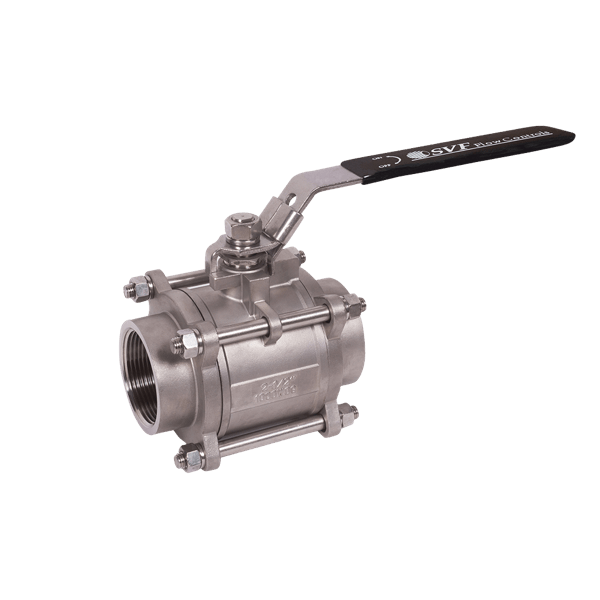

SVF 30SSTH-1 Ball Valve

Product Description

The SVF 30SSTH-1 Ball Valve is made from 316 stainless steel, ensuring high resistance against corrosion. This valve has a full port design that allows unrestricted flow, making it suitable for various applications. With a three-piece construction, maintenance is straightforward and hassle-free. The locking lever handle secures the valve in position to prevent accidental operation.

• 316 stainless steel construction for corrosion resistance
• Full port design for efficient flow
• Blow-out proof stem for added safety

Product Highlights

The SVF 30SSTH-1 Ball Valve is ideal for plumbing systems, rated to handle up to 1000 WOG and 150 lb. WSP. It operates effectively within a temperature range from -4°F to 392°F. Threaded end connections comply with ASME B1.20.1 (NPT) standards. This valve size ranges from one-fourth inch to four inches, making it versatile for different piping systems.

Product Information

Standard Information

• Item Number: 30SSTH-1
• Brand: SVF

Technical Specifications

• End Connection: Threaded
• Handle Type: Locking Lever
• Material: Stainless Steel
• Pressure Rating: 1000 WOG
• Product Type: Three Piece
• Ball Seat Material: R.PTFE
• Stem Material: Stainless Steel AISI 316
• Temperature Rating: -4°F to 392°F
