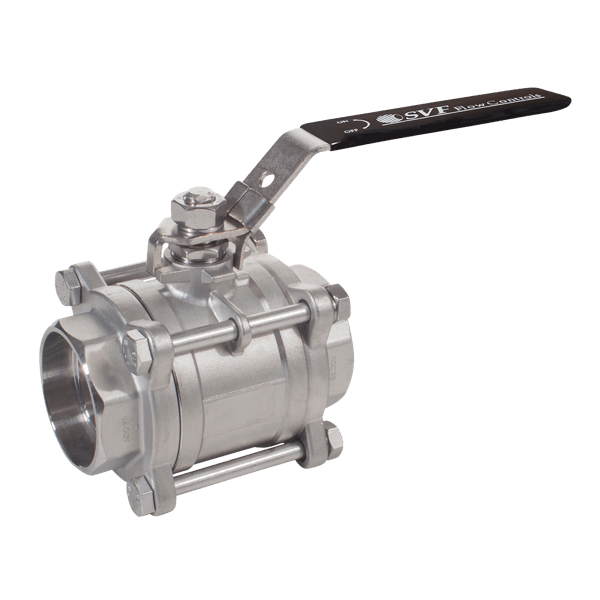

SVF 30SSSW-2 Stainless Steel Socket Weld Ball Valve - 3-Piece

Product Description

The SVF 30SSSW-2 is a three-piece ball valve made from a 316 stainless steel body, cap, and ball. It is designed for applications that involve water, oil, and gas. The valve has a full port design and socket weld ends that comply with ANSI B16.11 standards. It is rated for up to 1000 WOG and has a working steam pressure of 150 lb. Safety features include a blow-out proof stem and a locking handle. This valve operates effectively within a temperature range of negative four degrees Fahrenheit to three hundred ninety-two degrees Fahrenheit.

• Constructed with a durable 316 stainless steel body for corrosion resistance.
• Includes a blow-out proof stem and locking handle for safe operation.
• Suitable for high-pressure applications with a temperature range of negative four degrees Fahrenheit to three hundred ninety-two degrees Fahrenheit.

Product Highlights

This ball valve is ideal for plumbing systems requiring reliable performance under various conditions.

Product Information

Standard Information

• Brand: SVF
• MPN: 30SSSW-2

Technical Specifications

• Body: Stainless Steel 316
• Cap: Stainless Steel 316
• Ball: Stainless Steel 316
• Ball Seat: R.PTFE
• Joint Gasket: R.PTFE
• Stem: Stainless Steel AISI 316
• Thrust Washer: R.PTFE
• Stem Packing: R.PTFE
