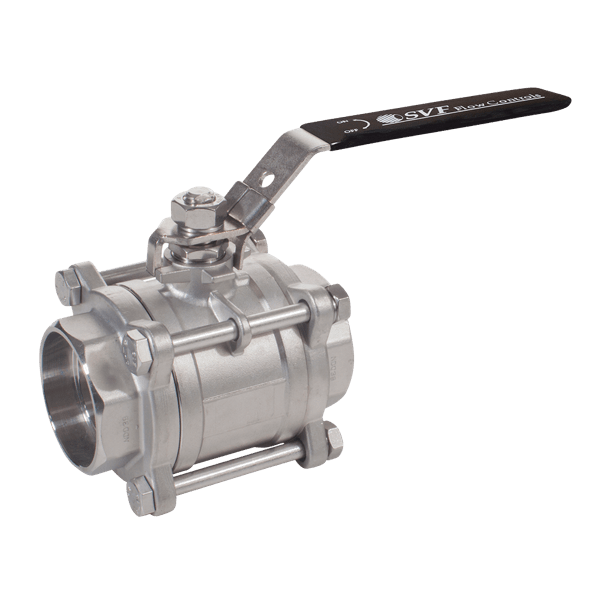

SVF 30SSSW-1 3-Piece Stainless Steel Socket Weld Ball Valve

Product Description

The SVF Valves 30SSSW-1 is a 3-piece ball valve designed for precise fluid control. Made with 316 stainless steel, it ensures durability and resistance to corrosion. This valve features a full port design which enhances flow efficiency and socket weld connections that meet ANSI B16.11 standards for secure attachment to your piping systems.

• Constructed from durable 316 stainless steel
• Full port design for maximum flow efficiency
• Socket weld connections for secure fittings

Product Highlights

The valve includes a locking lever handle for secure operation and a blow-out proof stem for enhanced safety during use. It's suitable for a wide range of applications operating within -4°F to 392°F, maintaining pressure up to 1000 WOG.

Product Information

Standard Information

• Item Number: 30SSSW-1
• Brand: SVF Valves

Technical Specifications

• End Connection: Socket Weld
• Handle Type: Locking Lever
• Material: Stainless Steel 316
• Port Type: Full Port
• Pressure: 1000 WOG
• Product Type: 3 Piece
• Size: 1-1/4 IN
• Body: Stainless Steel 316
• Ball: Stainless Steel 316
• Ball Seat: R.PTFE
• Stem: Stainless Steel AISI 316
• Lock Device: Stainless Steel AISI 430
• Hex Nut: Stainless Steel AISI 304
• Socket Weld Ends Conform to: ANSI B16.11
