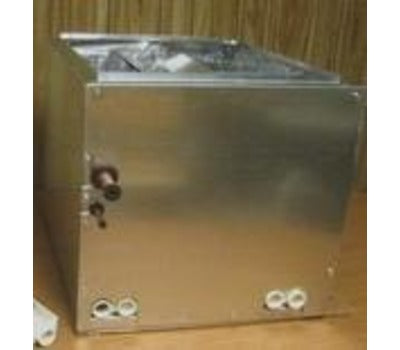

Sustainable Coils 1060A23 5 Ton Low Profile 3-Row 23 in. Uncased Replacement A Coil

Product Description

The Sustainable Coils 1060A23 is a 5 ton low profile, 3-row, uncased replacement A coil. This product is designed to enhance HVAC system efficiency and longevity.

• Constructed with 3/8 inch OD Uniguard copper alloy tubing to prevent formicary corrosion.
• Features aluminum end plates that reduce rust and enhance durability.
• Includes plastic drain pans made from sturdy nylon resin, UL 94, 5VFR-rated, and UV safe.

Product Highlights

This replacement coil works effectively with F-Series air handlers and is piston metered for R-22 refrigerant.

Product Information

Standard Information

• Brand: Sustainable Coils
• For Use With: F-Series Air Handler

Technical Specifications

• Length: 19.5 inches
• Width: 23 inches
• Height: 22.5 inches
• Weight: 35 lbs
• Material: Aluminum Fin
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Drain Connection Size: 3/4 inch
• Cooling Capacity: 5 tons
• Refrigerant Type: R-22
• Specifications Met: UL Listed
• Catalog Number: 1060A23
