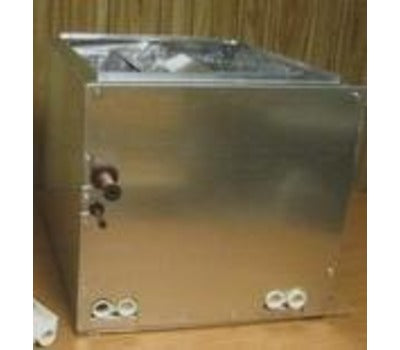

Sustainable Coils 1048A16 4 Ton Low-Profile 3-Row 16 in. Uncased Replacement A Coil

Product Description

The Sustainable Coils 1048A16 is a 4 Ton low-profile, 3-row, 16 inch uncased replacement A coil designed for HVAC systems. This coil is built using advanced materials to ensure durability and efficiency.

• Compatible with F-Series Air Handler.
• Features 3/8 inch OD Uniguard by Luvata copper alloy tubing.
• Includes aluminum end plates for rust reduction.

Product Highlights

This coil is designed to resist formicary corrosion and includes plastic drain pans that are sturdy and UV safe. The coil is piston metered for R-22 refrigerant and comes with a pre-swaged line connection, shipped with a dry nitrogen holding charge.

Product Information

Standard Information

• Brand: Sustainable Coils
• MPN: 1048A16
• Item ID: SCL1048A16
• Category: Replacement Evaporator Coils

Technical Specifications

• Width: 16 inches
• Height: 18-1/2 inches
• Length: 19-1/2 inches
• Weight: 27 lb.
• Material: Aluminum Fin
• For Use With: F-Series Air Handler
• Catalog Number: 1048A16
• Liquid Line Size: 3/8 inch
• Refrigerant Type: R-22
• Suction Line Size: 7/8 inch
• Specifications Met: UL Listed
• Drain Connection Size: 3/4 inch
• Cooling Capacity In Tons: 4.0 ton
