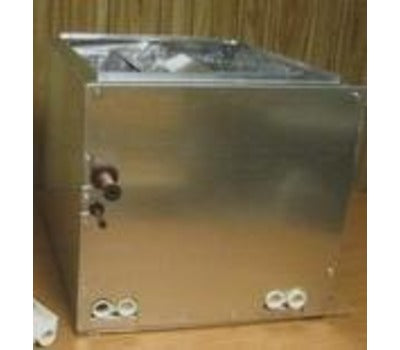

Sustainable Coils 1036A13 3 Ton Low Profile 3-Row 13 Inches Uncased Replacement A Coil

Product Description

The Sustainable Coils 1036A13 3 Ton Low Profile 3-Row 13 Inches Uncased Replacement A Coil is designed to provide efficient and reliable cooling for HVAC systems. It is constructed with durable materials and includes advanced features to ensure performance and longevity.

• 3/8 inches OD Uniguard by Luvata copper alloy tubing
• Aluminum end plates for rust reduction
• Plastic drain pans, UL 94 and UV safe

Product Highlights

This replacement A coil is suitable for various HVAC applications. It offers excellent corrosion resistance and easy installation with pre-swaged line connection and a dry nitrogen holding charge.

Product Information

Standard Information

• Brand: Sustainable Coils
• MPN: 1036A13

Technical Specifications

• Width: 13 inches
• Height: 14-1/2 inches
• Length: 19-1/2 inches
• Weight: 22 lb.
• Material: Aluminum Fin
• For Use With: F-Series Air Handler
• Catalog Number: 1036A13
• Liquid Line Size: 3/8 inches
• Refrigerant Type: R-22
• Suction Line Size: 3/4 inches
• Specifications Met: UL Listed
• Drain Connection Size: 3/4 inches
• Cooling Capacity In Tons: 3.0 tons
