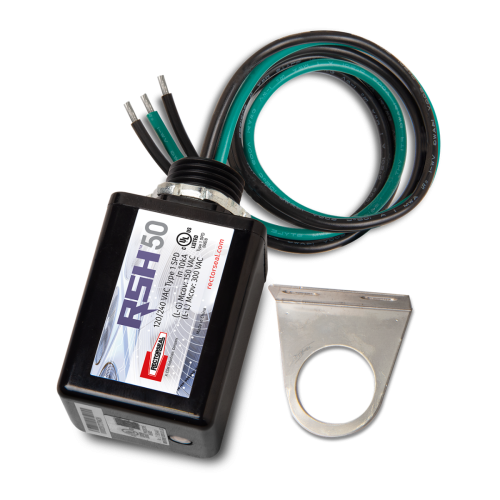

SURGE PROTECTION 96415 RSH-50 Surge Protective Device

Product Description

The SURGE PROTECTION 96415 RSH-50 is a surge protective device designed for single-phase 120/240 VAC systems. This device uses gas discharge tube technology and thermally fused metal oxide varistors to protect against transient over-voltage and electrical surges. It is appropriate for both residential and commercial applications and can be mounted within the electrical system. This unit safeguards air conditioning systems, heat pumps, and ductless mini-split systems from both single and repetitive voltage surges.

• Protects against single surges up to fifty thousand amps.
• Protects against repetitive surges up to ten thousand amps.
• Includes a green LED indicator to show protection status.

Product Highlights

This surge protective device enhances system reliability by preventing equipment damage from voltage spikes.

Product Information

Standard Information

• Part Number: 96415
• Maximum Voltage: 120V/240V

Technical Specifications

• Application: Protects single-phase 120/240-V air conditioning, heat pumps, and ductless mini-split systems from surges.
• Technology: Gas Discharge Tube, TFMOV
• Compliance/Certifications: cUL/UL Listed, RoHS Compliant
• Enclosure Rating: NEMA 4X
• Weight: 0.37 lb
• UPC: 021449964159
• Color: Black
