Product Description
The Suprema BS3-APWB BioStation 3 sets a new standard in access control, providing a new door access experience that enables improved security across all doors, for organizations of all sizes. This terminal is smaller than previous models, yet it has the largest variety of features. It provides optimal biometric function productivity and robust, affordable security using face detection technology.
- Offers fast and smart AI optimized for facial recognition access.
- Provides non-stop pass through, accurately and rapidly recognizing moving faces in high-traffic areas.
- Detects fake faces, images, and photos to safeguard against facial spoofing.
Product Highlights
This biometric access device is widely used for door access control and is easily mountable on a flat surface.
Product Information
Standard Information
-
Brand: SUPREMA
-
Manufacturer Part Number: BS3-APWB
-
Country of Origin: Korea
Technical Specifications
-
Brand Name: Suprema
-
Manufacturer: Suprema
-
Product Line: BioStation 3
-
Product Name: BioStation 3 The New Door Access Experience
-
Product Type: Biometric Access Device
-
Product Model: BS3-APWB
-
TAA Compliant: No
-
Indoor/Outdoor: Indoor
-
ADI Part Number: BS-BS3APWB
-
Network (RJ-45): Yes
-
Number of Users: 100000
-
Application/Usage: Door Access,Indoor,Office Building,Outdoor
-
Display Screen Type: LCD
-
Ethernet Technology: Gigabit Ethernet
-
Input Voltage: 12V DC, 24V DC
-
Identification Method: Face Detection
-
Environmentally Friendly: Yes
-
Manufacturer Part Number: BS3-APWB
-
Environmental Certification: REACH,ROHS,WEEE
-
Impact Protection (IK) Rating: IK06
-
Ingress Protection (IP) Rating: IP65
-
Bluetooth: Yes
-
Form Factor: Surface Mount
-
Wireless LAN: Yes
-
Model Name: BS3-APWB
-
Credential: Face
-
RF Option: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3
-
RF read range: EM/HID Prox/MIFARE/DESFire/HID iCLASS: 30 mm, FeliCa: 15 mm
-

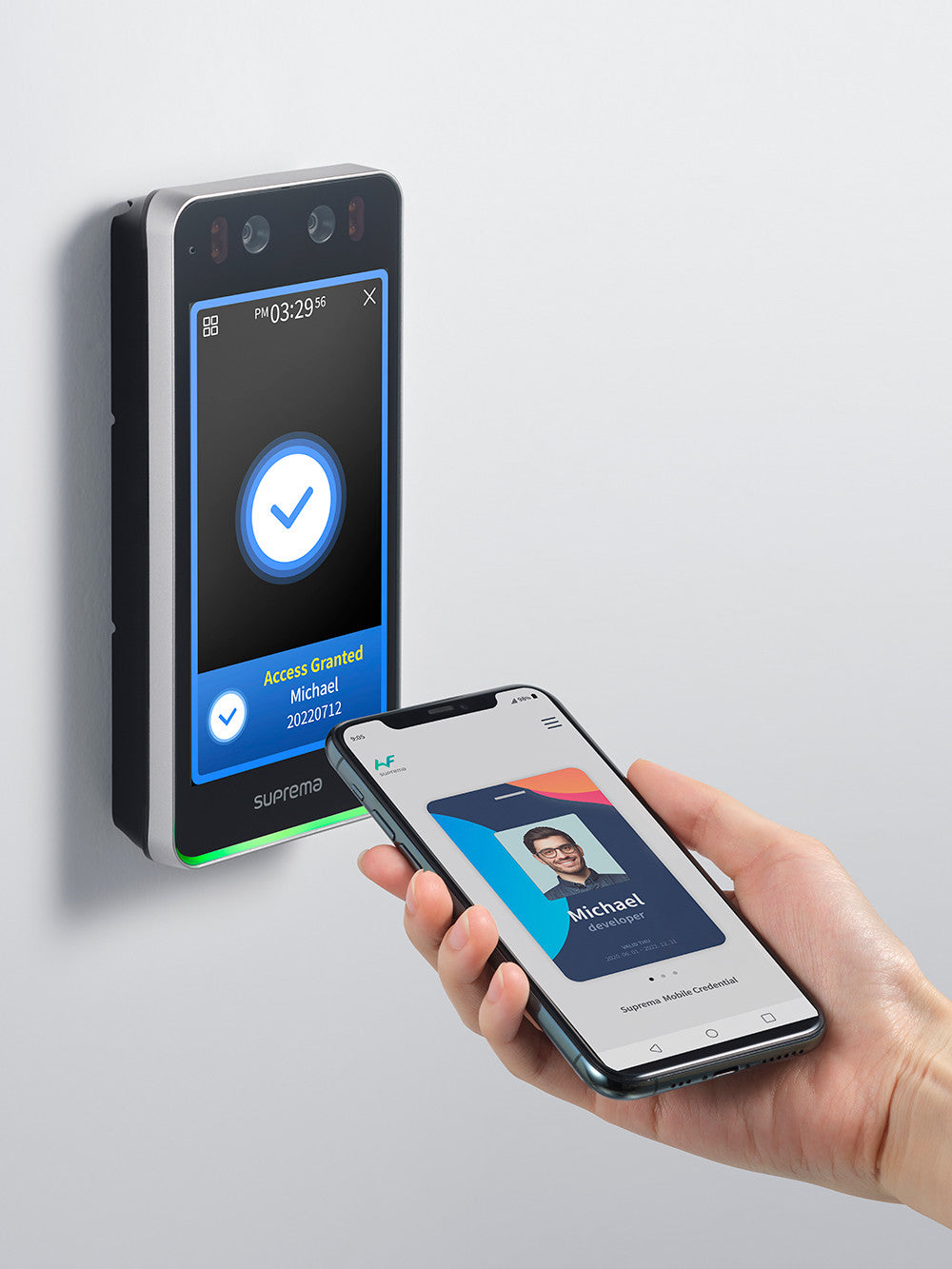

Mobile Card: NFC, BLE
-

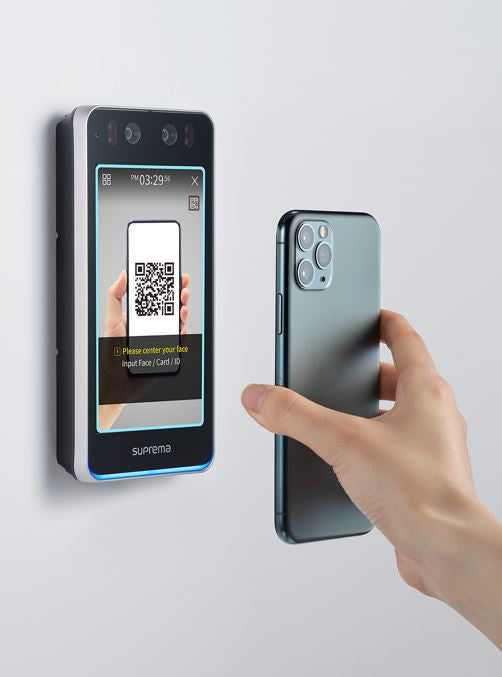

QR/Barcode: Supported
-
Scrambled Keypad (PIN): Supported
-
Face Authentication Distance: 0.3 ~ 1.0 m
-
Authentication Height: 1.4 ~ 1.9 m
-
Matching speed: Within 0.2 seconds
-
Live Face Detection: Supported
-
Max. Credential (1:N): Face: 50,000
-
Max. Credential (1:1): Face: 100,000 / Card: 100,000 / PIN: 100,000
-
Max. Text Log: 5,000,000
-
Max. Image Log: 50,000
-
CPU: 1.5GHz Quad Core
-
Memory: 32GB Flash + 4GB RAM
-
Crypto Chip: Supported
-
Display: 5.5" IPS color LCD
-
Display Resolution: 720 x 1280 pixels
-
Camera: IR: 2M pixels
Visual: 2M pixels
-
Sound: 16bit
-
Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
-
Storage Temperature: -40 °C ~ 70 °C
-
Operating Humidity: 0% ~ 80%, non-condensing
-
Storage Humidity: 0 % ~ 90 %, non-condensing
-
Ethernet: Supported (10/100/1000 Mbps, auto MDI/MDI-X)
-
Wi-Fi: Supported (802.11 b/g/n 2.4GHz)
-
Network Protocol: TCP, UDP
-
RS-485: 1 ch Master / Slave (Selectable)
-
RS-485 Communication Protocol: OSDP V2 Compliant
-
Wiegand: 1 ch Input, 1 ch Output
-
Input: 3ch Inputs
-
Relay: 1 Relay
-
USB: USB 2.0 (Host)
-
USB expansion port: Supported
-
PoE+: Supported
(IEEE 802.3 at compliant)
-
Intercom: Supported
-
RTSP (Real Time Streaming Protocol): Supported
-
Tamper: Supported
-
Power: Voltage: 12 Vdc, Current: Max. 1 A
Voltage: 24 Vdc, Current: Max. 0.7 A
-
Mount Type: Surface Mount
-
Country of Origin: KR
-
MPN: BS3-APWB
-
Serial interface: RS485, TTL
-
USB Interface: USB 2.0
-
Working Temperature (°C): From -20 to 50
-
Weather Proof IP Rating: 65
-
Intercom technology: VoIP and RSTP
-
Power supply: 12VDC, 24VDC, POE+
-
Current max [mA]: 2500
-
LED display: none
-
Touchscreen: Yes
-
QR-Code reader: Yes
-
QR-Code type: QR Code: requires a licence (see accessories)
-
Intercom function: Yes
-
RFID technology versions: BLE, EM 125KHz, FeliCa 13.56 MHz, HID 125 KHz, HID iCLASS SE, HID iCLASS SR, HID iCLASS Seos, MIFARE Classic, MIFARE Desfire EV1, MIFARE Desfire EV2, MIFARE Desfire EV3, MIFARE Plus, NFC (CSN)
-
RFID technologies: BLE, EM, FeliCa, HID, Mifare, NFC
-
RFID encryption: Programmable
-
Relay outputs: 1
-
IP Ethernet: RJ45 integrated on mainboard
-
Number of wired inputs: 3
-
Memory RAM: 4GB
-
Memory Flash: 32GB
-
Biometric identification: Face recognition
-
Max users [1:1]: 100000
-
Max users [1:N]: 50000
-
Max. text log events: 5000000
-
Max. image log events: 50000
