Supplying Demand TFXDMP Hvac Disconnect Mounting Plate

Product Description

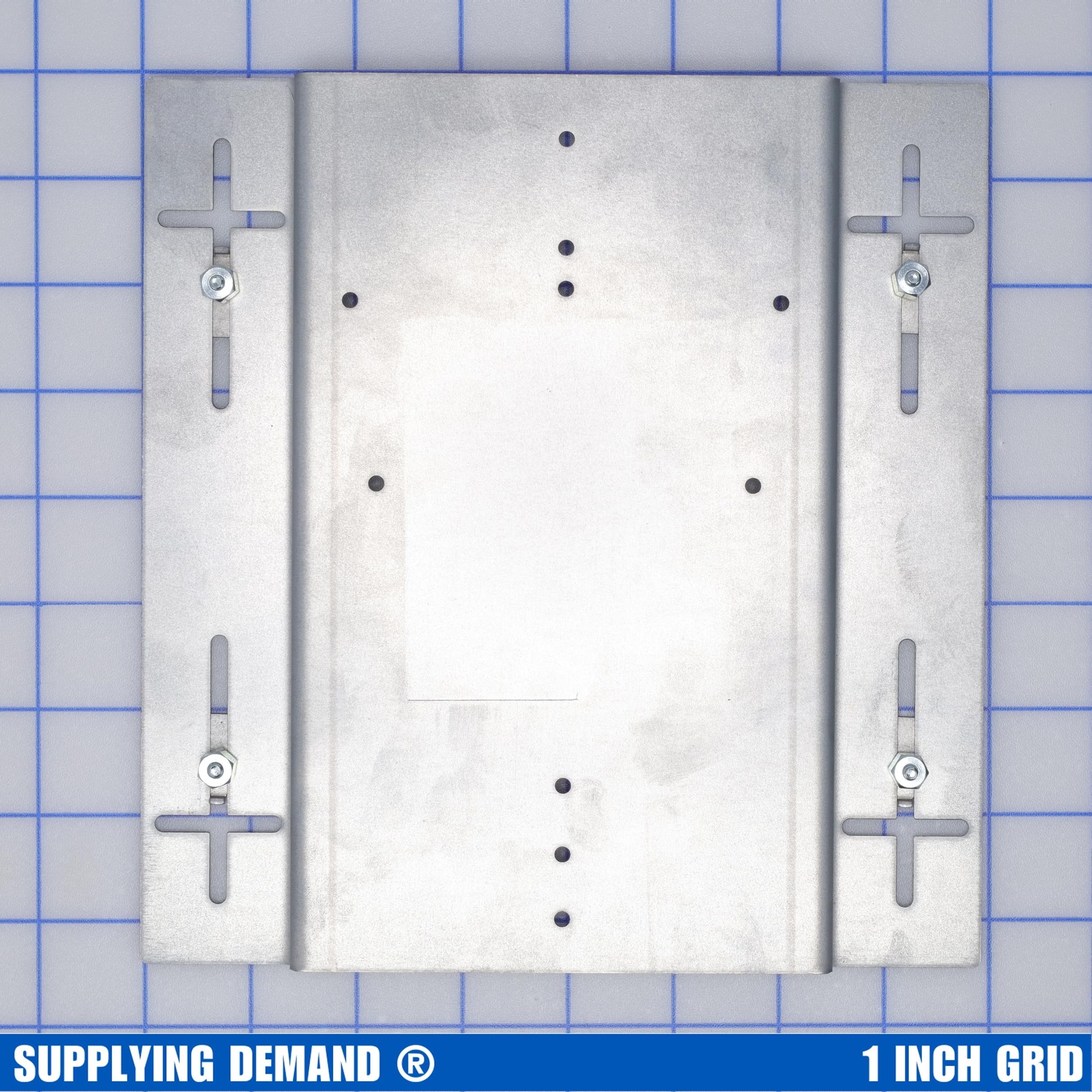

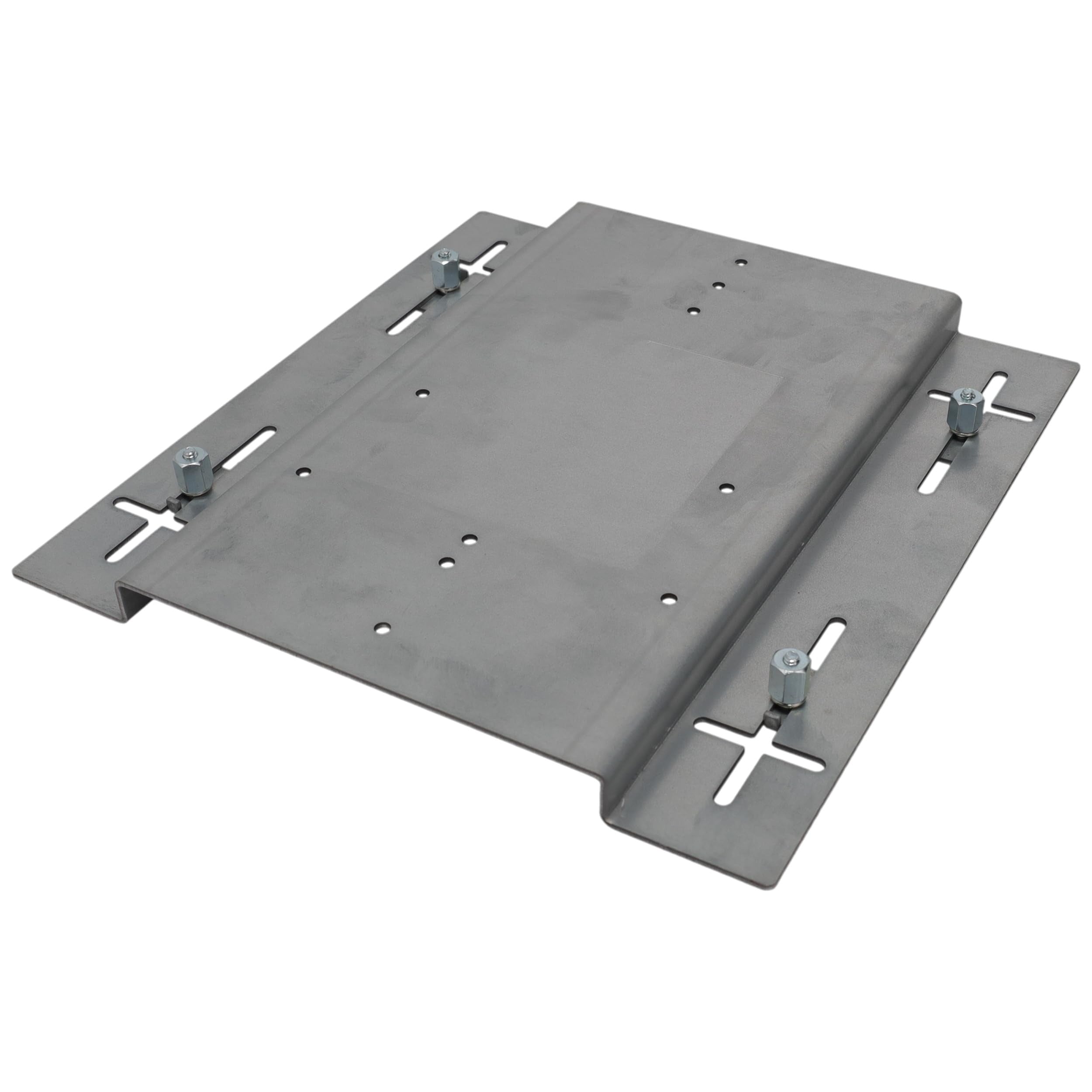

The Supplying Demand TFXDMP is a disconnect mounting plate designed to secure single-phase HVAC disconnect boxes to outdoor condensing units and similar equipment. Constructed from weather-resistant galvanized steel, this mounting plate measures 8.25 inches by 8 inches by 0.75 inches and weighs 1.5 pounds. The cross-pattern mounting layout provides a universal fit across a range of single-phase disconnect configurations without obstructing access to the electrical panel. Hex nuts are included for straightforward installation using a standard 5/16-inch nut driver. HVAC technicians and electricians working on residential and light commercial cooling equipment will find this plate a practical solution for mounting disconnects cleanly and securely.

This mounting plate is suited for use on residential and light commercial HVAC systems where a single-phase disconnect box requires secure attachment to the unit chassis or mounting surface. The cross-pattern layout accommodates various hole spacing configurations found on common single-phase disconnects, reducing the need for custom drilling or fabrication. It is particularly useful during new installations or when replacing a damaged or missing mounting plate on an existing unit.

Key Features

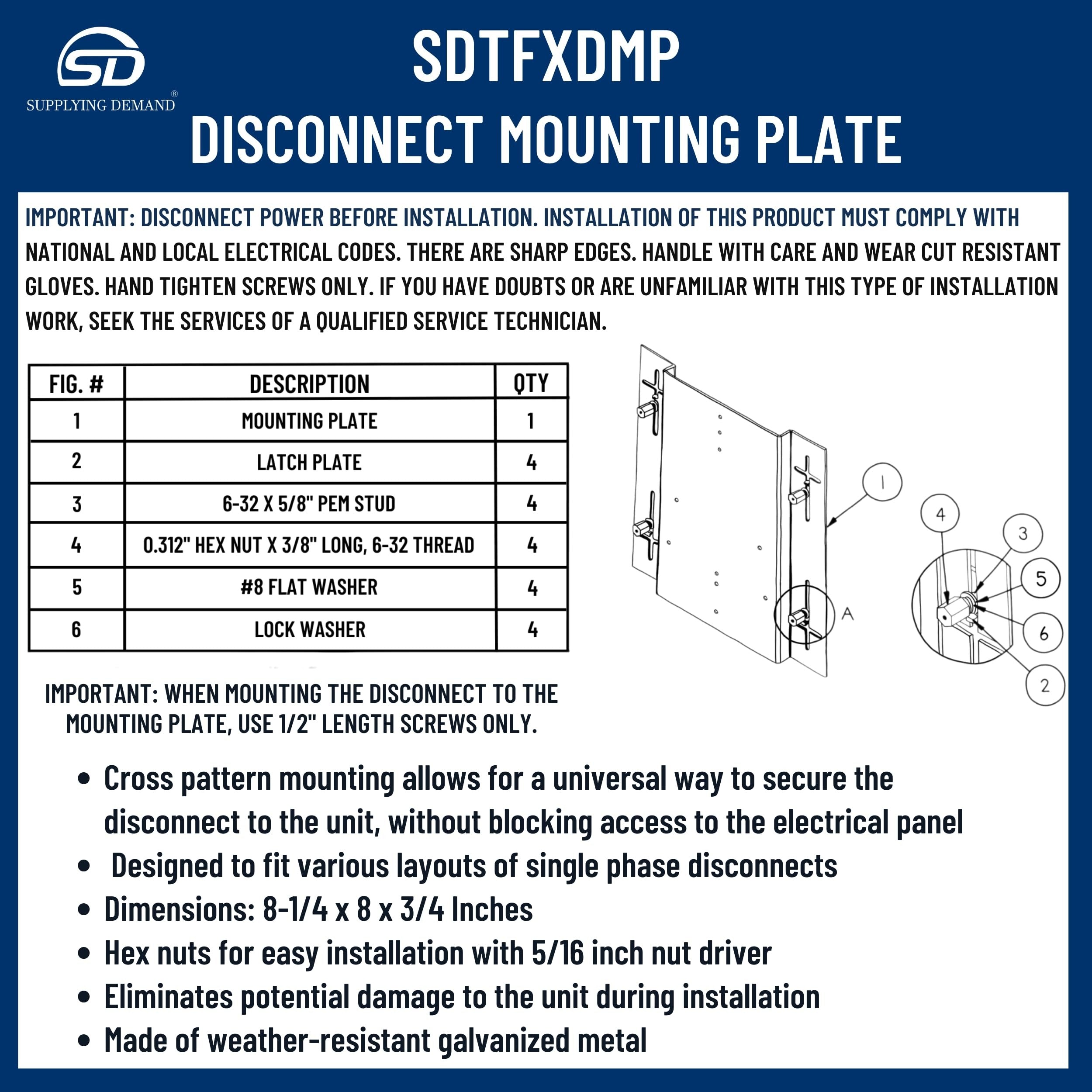

• Cross-pattern mounting holes allow universal fitment across various single-phase disconnect layouts
• Galvanized steel construction resists weather and corrosion for outdoor use
• Design does not block access to the internal electrical panel once installed
• Includes hex nuts for tool-simple installation with a 5/16-inch nut driver
• Reduces risk of unit damage during disconnect installation
• Compact profile at 8.25 inches by 8 inches by 0.75 inches

Compatibility

Designed as an OEM-style replacement mounting plate compatible with major brand single-phase HVAC disconnect boxes. Always verify fitment with your specific disconnect box and unit before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician or electrician in accordance with local electrical codes and NEC requirements. Disconnect and lock out all power to the unit before handling any electrical components or mounting hardware. Use a 5/16-inch nut driver to secure the included hex nuts. Confirm that the mounted disconnect box remains accessible for service after the plate is fastened.
