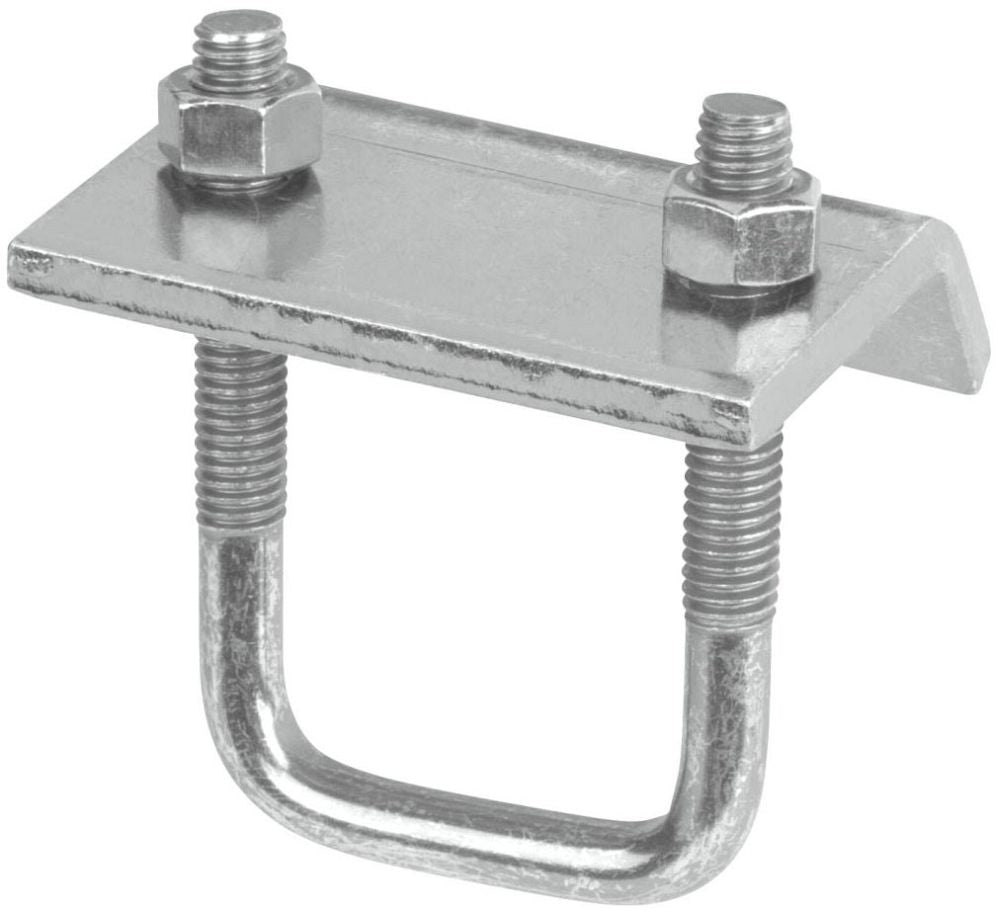

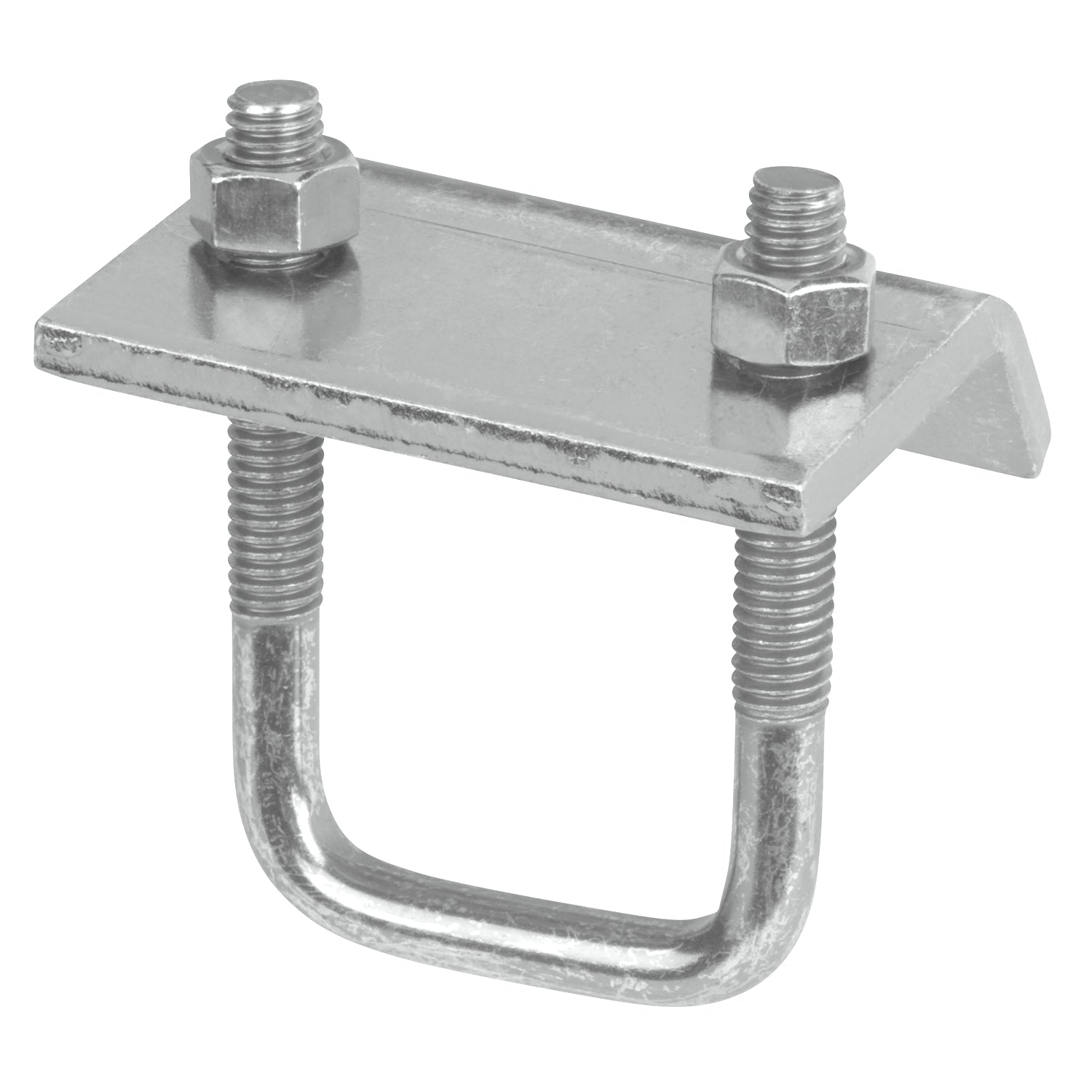

Superstrut U501-EG Clamp, Channel to Beam, Height 3-3/16 Inches, Plate Width 3 Inches, Plate Length 2-3/8 Inches, Plate Thickness 13/16 Inch

Product Description

The Superstrut U501-EG is a robust clamp designed to secure channels to beams, featuring a height of three and three-sixteenths inches. This clamp is made of high-quality steel and is ideal for use with A-1200, B-1200, C-1200, A-1400, B-1400, and B-1402 series channels.

• Material: Steel with SilverGalv finish
• Maximum load capacity: 2,150 pounds
• Dimensions: Height three and three-sixteenths inches, width three inches, length two and three-eighths inches

Product Highlights

This clamp is crucial for various applications in construction and maintenance, providing a reliable connection between beams and channels.

Product Information

Standard Information

• Brand: Superstrut
• Manufacturer: ABB - Installation Products

Technical Specifications

• Catalog Number: U501 EG
• Country of Origin: United States
• Made in USA: Yes
• Application: For use with A-1200, A-1400, B-1200, B-1400, C-1200 and B-1402 Series Channel
• Finish: SilverGalv/Electro-Galvanized
• Maximum Load: 2,150 pounds
• UPC: 616013288733
