Superstrut 703-1-1/2-EG Universal Clamp 14 Gauge 1-1/2 Inch Replacement MPN

Product Description

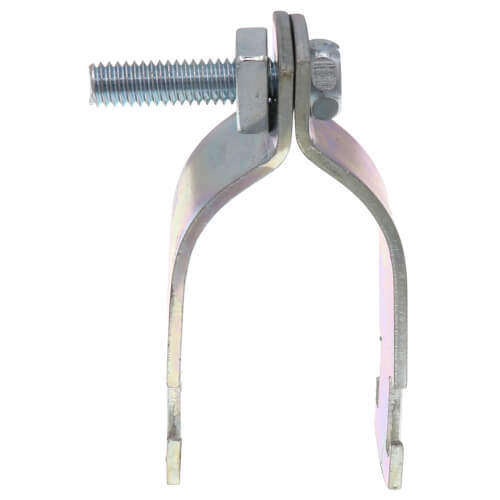

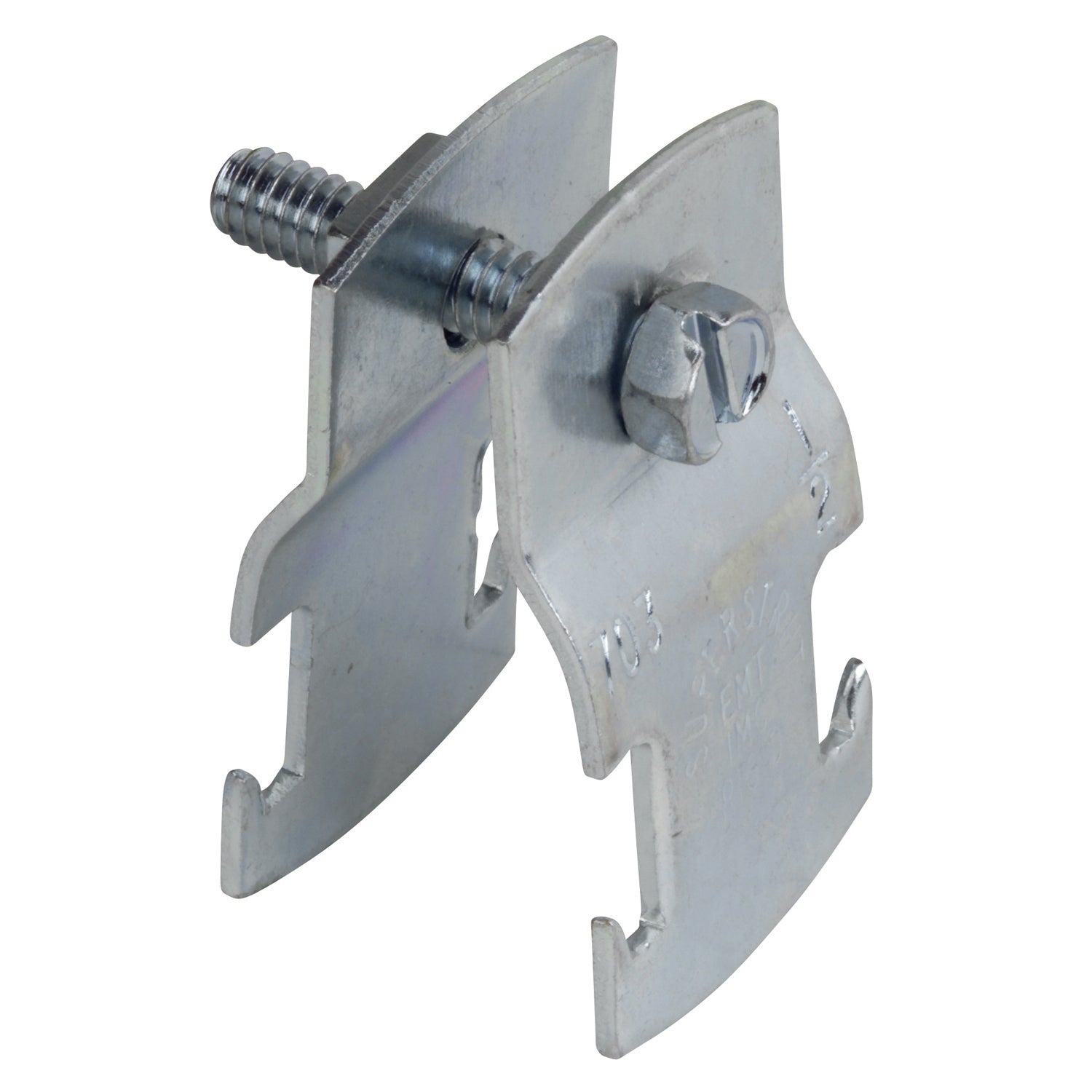

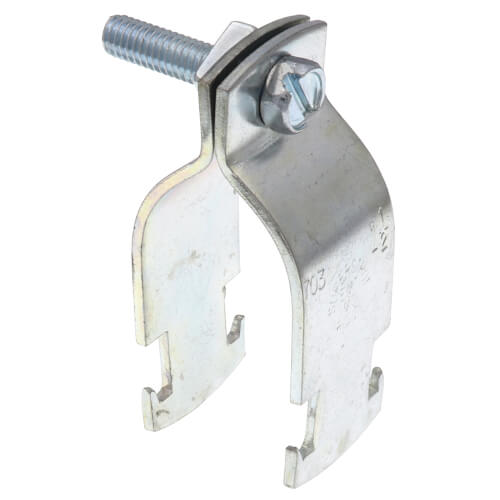

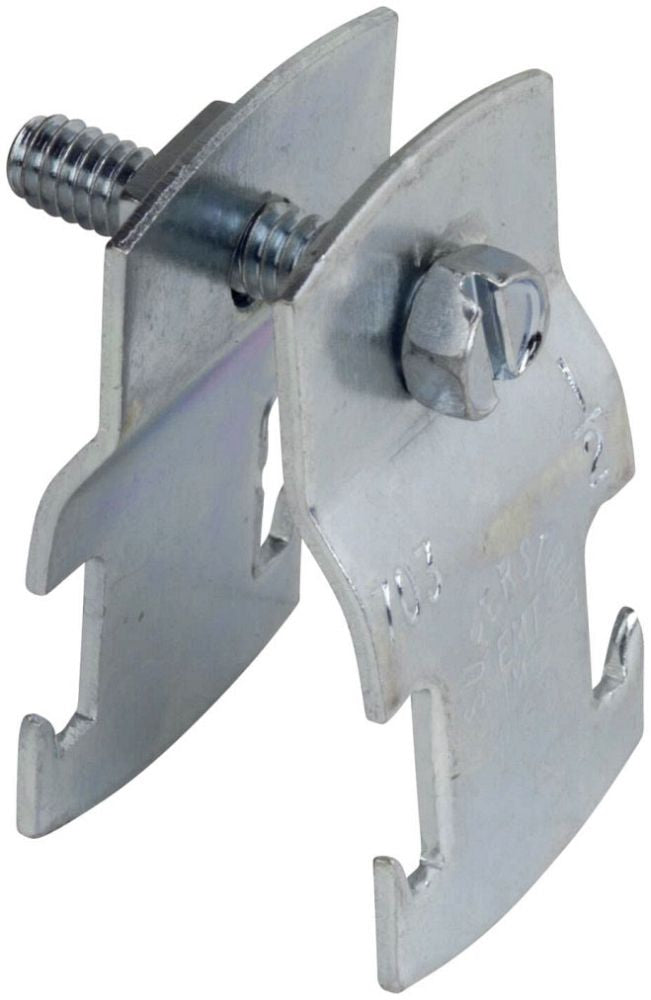

The Superstrut 703-1-1/2-EG is a universal clamp made of steel designed for use with rigid or IMC conduit and electrical metal tubing. It is engineered to accommodate pipes with an outer diameter ranging from one point seven three eight inches to one point nine inches. This clamp is constructed with electro-galvanized steel for enhanced durability and rust resistance.

• Suitable for 14 gauge applications.
• Supports a load capacity of up to eight hundred pounds.
• Includes a bolt head featuring a combination slot and hex head for versatile attachment options.

Product Highlights

This clamp supports various installation requirements, allowing for easy adjustments and securing multiple conduits.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• Country of Origin: United States

Technical Specifications

• Catalog Number: 703 1 1/2 EG
• Material: Steel
• Finish: Electro Galvanized
• Mounting Type: Channel Mount
• Thickness: 14 Gauge
• Number of Holes: 0
• Load Rating: 800 lb
