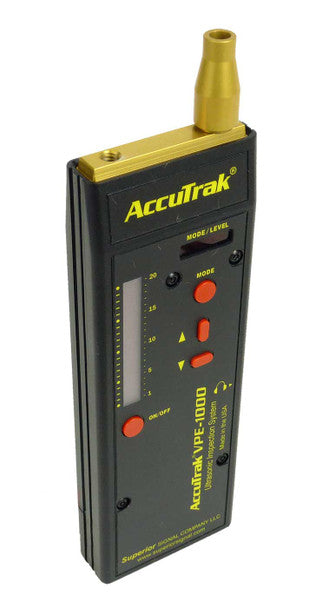

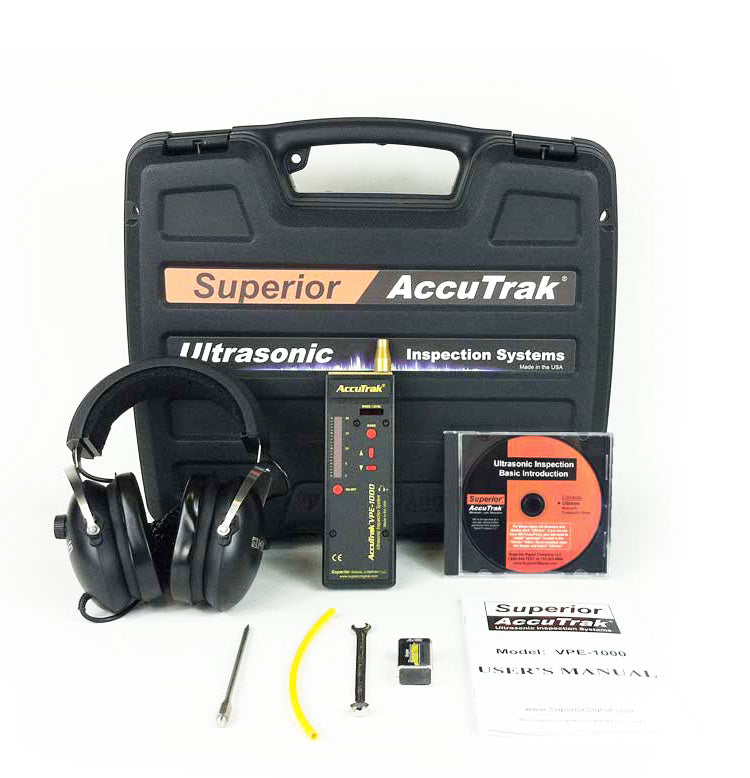

Superior VPE-1000 Digital Ultrasonic Leak Detector

Product Description

The SUPERIOR VPE-1000 Digital Ultrasonic Leak Detector is a versatile tool for detecting leaks and friction in industrial systems. It uses heterodyning to translate ultrasound to audible frequencies. The AccuTrak VPE-1000 features separate ultra-sensitive sensors for both airborne and contact ultrasound. It is sensitive enough to hear the blink of an eye, yet background noise will not interfere with leak detection accuracy.

• Detects air, refrigerant, vacuum, and other gases.
• Features digital LED indicators, both alphanumeric and bar-graph.
• Equipped with dual sensors, each with excellent frequency response and independent settings.

Product Highlights

Ideal for factories, warehouses, schools, hospitals, hotels, and other large institutional or industrial environments.

Product Information

Standard Information

• Brand: SUPERIOR
• Manufacturer Part Number: VPE-1000
• Country of Origin: USA

Technical Specifications

• Airborne Sensor Sensitivity: -80db/V-µbar
• Detection Performance: 5mil ID @ 5PSI From 50' (60db Ambient Sound Level-No In-band Sound)
• Ultrasound Converter type: Digitally Controlled Heterodyne
• Airborn Frequency response: 36kHz-42kHz
• Touch Probe Frequency response: 16kHz-24kHz
• Heterodyne Oscillator: Digital
• Heterodyne Filter: 4kHz
• Controls: 4 Buttons
• Sensitivity Control: 256 Steps
• Digital Volume Control: 256 Steps AUDIO ZOOM
• Output, Audio: 0Hz to 4kHz
• Output, Visual: 20 Element Bar Graph with PEAK-Hold and Separate Alphanumeric Digital Display allowing simultaneous readings and comparisons.
• Battery Type: Std. 9 Volt Alkaline
• Run Time: 55-80 hrs
• Connector: 3.5mm Stereo
• Body Materials: Aluminum and ABS
• Item model number: VPE-1000
• Manufacturer: Superior Signal
• Shape: Parallelepiped
• Body Finish: Anodized, Gold (MIL-A-8625 Type3 Class2), Black ABS
• Top Label: Velvet Lexan, Back Printed
• Signal Output: Heterodyne
• On Indicator: Digital Display
• Low Battery Indicator: Digital Display, BATT
• Insufficient Battery Charge: Automatic Shut-Down
