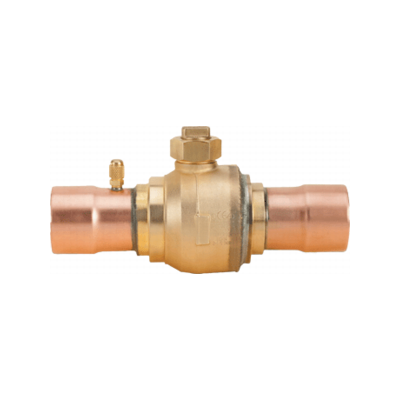

SUPERIOR REFRIGERATION 593WAS-15ST Brass Ball Valve with Access Fitting

Product Description

The Superior Refrigeration 593WAS-15ST is a brass ball valve designed specifically for refrigeration systems. It features a forged brass body that ensures durability. The valve has a full-size port that allows for unrestricted flow, making it ideal for efficient refrigeration. Included with the valve are copper tube extensions and an access fitting positioned for convenience. This valve is designed for use with various refrigerants, including CO2, CFC, HFC, and HCFC. Its non-directional flow design allows for flexible installation.

• Forged brass body construction
• Full-size port for unrestricted flow
• Includes access fitting for easy access

Product Highlights

This valve is suitable for a wide range of refrigeration applications and offers reliable performance.

Product Information

Standard Information

• Valve Type: Ball Valve
• Body Material: Brass

Technical Specifications

• Seal Material: Teflon
• Connection Type: Sweat or Braze
• Connection Size: 1 5/8 inches
• Ball Port Diameter: 1.50 inches
• Operating Temperature Range: -40°F to 325°F
• Maximum Pressure: 800 PSIG
• Flow Coefficient (Cv): 135.0
• Application: Refrigeration System
• Options: Welded
• Product Type: Non-Directional Flow
• Approvals: CUL Listed; UL Listed
• Country of Origin: USA
• Length: 9.1 inches
• Width: 2.8 inches
• Height: 4.2 inches
