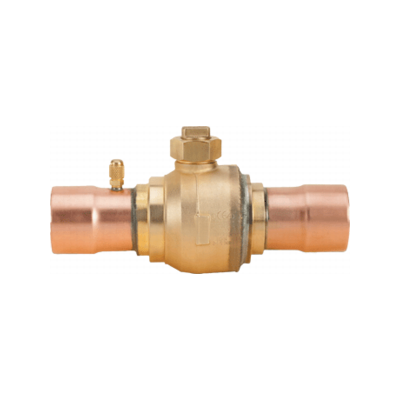

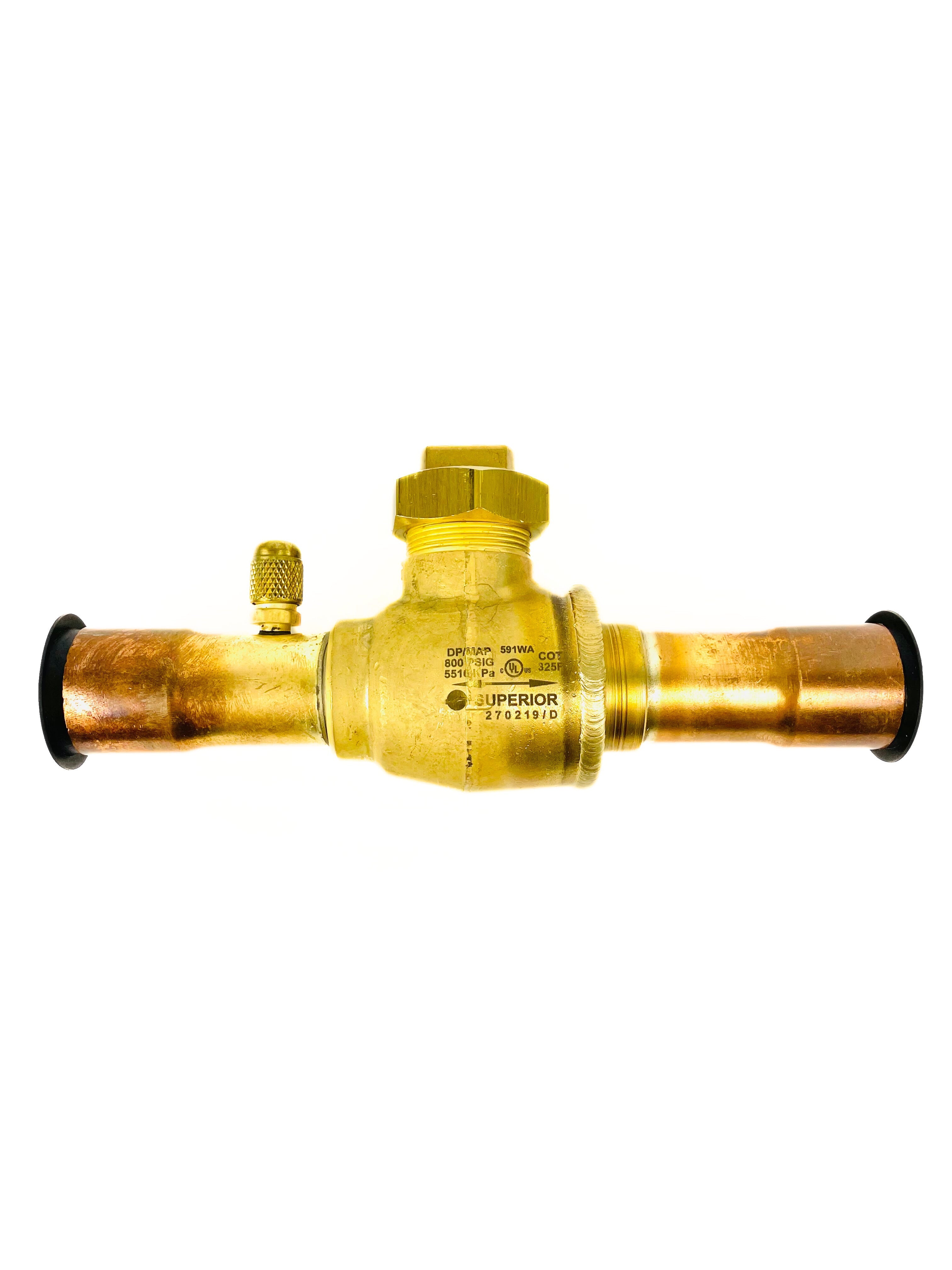

Superior Refrigeration 591WAS-11ST Ball Valve - 1-1/8 ODS with Access Fitting

Product Description

The Superior Refrigeration 591WAS-11ST is a reliable ball valve for refrigeration applications. It features a forged brass body with a seal cap and a 1-1/8 ODS connection. This valve includes an access fitting, ensuring easy service and maintenance. Designed to handle a working pressure of up to eight hundred psi, it operates effectively within a temperature range from minus forty degrees Fahrenheit to three hundred twenty-five degrees Fahrenheit. The valve's polished brass or carbon steel ball and dual stem seal design provide durability in various conditions.

• Forged brass body and seal cap for durability.
• Working pressure rating of up to 800 psi.
• Operating temperature range from -40°F to 325°F.

Product Highlights

This ball valve is suitable for full refrigeration service and is CUL and UL listed for safety.

Product Information

Standard Information

• Brand: Superior Refrigeration
• Manufacturer Part Number: 591WAS-11ST

Technical Specifications

• Connection Size: 1 1/8 inches
• Connection Type: ODS
• Material: Brass/Steel
• Valve Type: Ball Valve
• Port Type: Full
• Operating Temperature Range: -40°F to 325°F
• Working Pressure: 800 psi
• Flow (Cv): 62.0
• Ball Port Diameter: 1 inch
• Body Material: Brass
• End Connection: ODS
• Seal Material: Teflon
• Approvals: CUL Listed; UL Listed
• Country of Origin: USA
• Length: 7.7 inches
• Width: 2 inches
• Height: 3.3 inches
