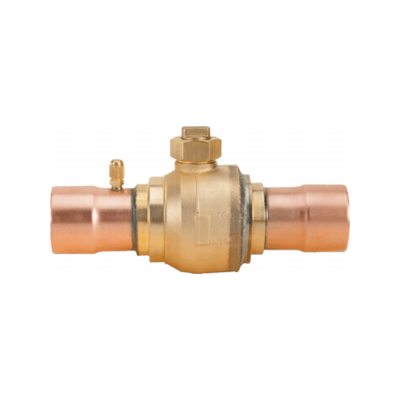

Superior Refrigeration 586WAS-10ST Ball Valve 5/8 ODS with Access Fitting

Product Description

The Superior Refrigeration 586WAS-10ST is a reliable ball valve suitable for refrigeration systems. It has a forged brass body and a seal cap that ensure durability and strength. The valve features a 5/8 ODS connection and comes with an access fitting. It supports a temperature range from negative forty degrees Fahrenheit to positive three hundred twenty-five degrees Fahrenheit. This valve is rated for a maximum working pressure of eight hundred PSIG. The design incorporates Teflon seals and a polished ball made of brass or carbon steel.

• Forged brass construction with a seal cap
• Wide operating temperature from -40°F to +325°F
• Includes a 1/4 M flare access fitting

Product Highlights

This ball valve is designed for optimal performance in refrigeration applications.

Product Information

Standard Information

• Brand: Superior Refrigeration
• MPN: 586WAS-10ST

Technical Specifications

• Connection Size: 5/8
• Connection Type: ODS
• Material: Brass/Steel
• Valve Type: Ball Valve
• Maximum Pressure (PSI): 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• Ball Port Diameter: 0.50
• Flow (Cv): 14.6
• Length (In.): 6.50
• Width (In.): 1.38
• Height (In.): 2.36
• Approvals: CUL Listed; UL Listed
