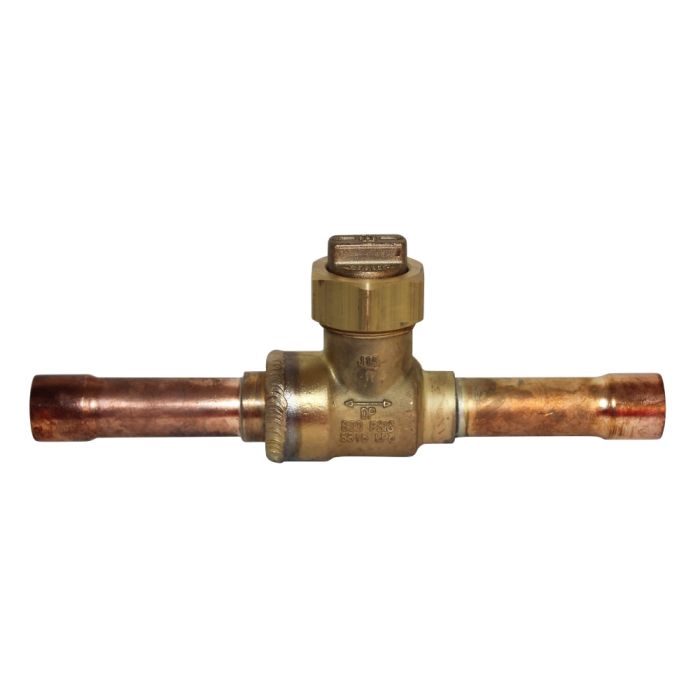

Superior Refrigeration 586WA-6ST Brass Ball Valve 3/8 ODS

Product Description

The Superior Refrigeration 586WA-6ST is a brass ball valve with a three-eighths ODS connection. This valve features a forged brass body and a seal cap. It is designed for use with CO2, CFC, HFC, and HCFC refrigerants. The full port allows for unrestricted flow, and the non-directional flow design permits installation in any position.

• Forged brass body with copper tube extensions
• Dual Teflon ball seals and dual stem seal design
• Temperature range of -40°F to +325°F

Product Highlights

This valve is suitable for refrigeration systems, with a maximum working pressure of seven hundred PSIG.

Product Information

Standard Information

• Brand: Superior Refrigeration
• MPN: 586WA-6ST

Technical Specifications

• Body Material: Brass
• Connection Size: 3/8
• Valve Type: Ball Valve
• Operating Temperature Range: -40°F to 325°F
• Maximum Pressure: 800 PSIG
• Ball Port Diameter: 1/2
• Application: Refrigeration System
• Seal Material: Teflon
• Flow (Cv): 3.6
• Overall Length: 6.50 inches
• Refrigerant Compatibility: CO2, CFC, HFC & HCFC
