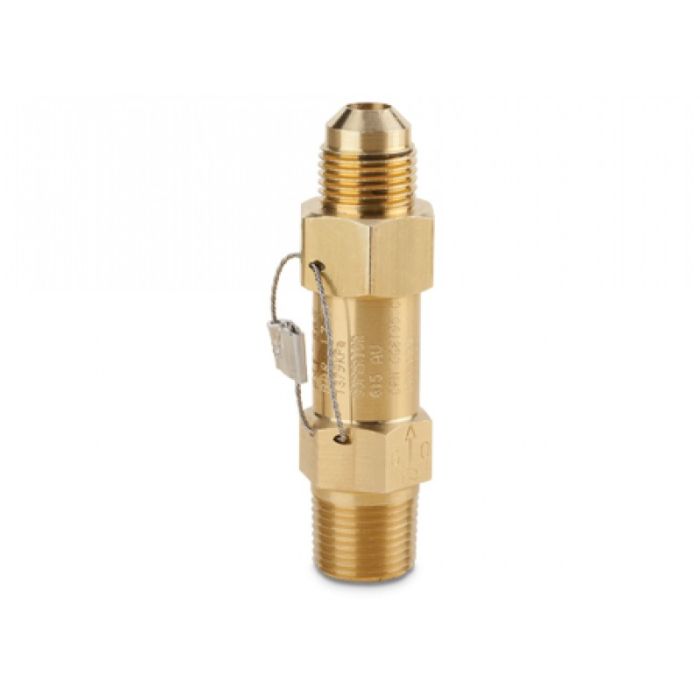

SUPERIOR HVACR 3020-300 Straight Through Relief Valve

Product Description

The SUPERIOR HVACR 3020-300 is a straight-through relief valve designed for effective pressure relief in HVAC systems. It has a half-inch NPT inlet and a five-eighths-inch outlet connection. The body is made from durable brass, ensuring longevity and reliability. This valve operates under a maximum pressure of three hundred PSI and is capable of discharging up to twenty point three units.

• Inlet Connection Size: 1/2 NPT
• Outlet Connection Size: 5/8
• Maximum Temperature: 325°F

Product Highlights

This relief valve is suitable for various applications in HVAC systems, providing essential safety and pressure control.

Product Information

Standard Information

• Body Material: Brass
• Seat Material: PTFE

Technical Specifications

• Inlet Connection Size: 1/2
• Outlet Connection Size: 5/8
• Maximum Temperature: 325°F (162.78°C)
• Temperature Range: -40°F to 325°F (-40°C to 162.78°C)
• Discharge Capacity: 20.3
• Minimum Setting: 150 PSIG
• Reseat Pressure: 80% of set pressure
• Port Diameter: 9/32
