Superior f55a 5 Inch Filter Cartridge Kit

Product Description

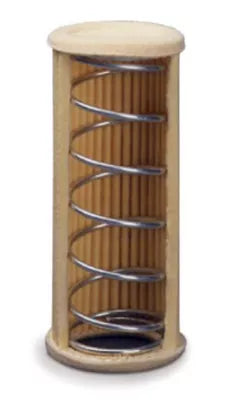

The SUPERIOR f55a is a super-pleated filter cartridge kit designed for HVACR fluid or refrigerant filtration applications. The pleated media construction provides up to twice the effective filter area of standard pleated or non-pleated filter cartridges, allowing for greater dirt-holding capacity and extended service intervals. The cartridge captures solid contaminants down to 10 microns in size. Integral end rings are permanently bonded to the filter media for a secure, leak-resistant seal. An internal stainless steel helical wire spring prevents cartridge collapse under normal operating conditions, maintaining consistent flow and filtration performance.

The f55a is suited for use in HVACR systems where refrigerant or fluid filtration is required to protect downstream components such as metering devices, compressors, and solenoid valves. The 5-inch cartridge size fits compatible filter housings used in commercial and residential HVACR service. Licensed HVACR technicians performing system maintenance, refrigerant-side service, or system commissioning are the primary installers of this component.

Key Features

• Super-pleated media provides up to twice the filter area of standard pleated or non-pleated cartridges
• Filters solid contaminants down to 10 microns
• Integral end rings permanently bonded to filter media for a leak-resistant seal
• Internal stainless steel helical wire spring prevents cartridge collapse under normal operation
• 5-inch cartridge form factor for use in compatible filter housings

Compatibility

Designed as an OEM-style replacement filter cartridge for compatible 5-inch HVACR filter housings requiring pleated cartridge-style media.

Installation Notes

Installation should be performed by a licensed HVACR technician. Before replacing the filter cartridge, isolate and recover any refrigerant or fluid pressure from the filter housing in accordance with EPA Section 608 regulations and applicable local codes. Inspect the housing end seals and O-rings before reinstalling the cartridge, and ensure the end rings seat fully before pressurizing the system.

Technical Specifications

• Filter Size: 5 inches
• Filtration Rating: 10 microns
• Internal Spring Material: Stainless Steel
• Media Type: Super-pleated
• End Ring Bond: Permanently bonded to filter media

Standard Information

• Brand: SUPERIOR
• Manufacturer Part Number: f55a
