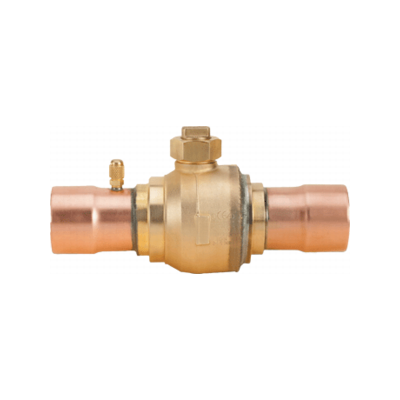

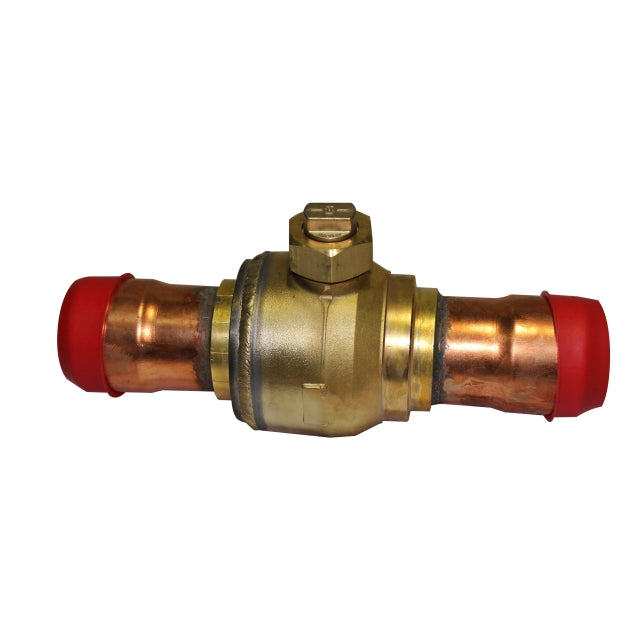

Superior 594WAS-21ST 2-1/8 inches ODS Brass Ball Valve, Access Fitting

Product Description

The SUPERIOR 594WAS-21ST Brass Ball Valve features a robotically welded body joint and full-size ports for unrestricted flow. It is 100% factory tested for leak-free performance, incorporating dual Teflon ball seals and a secondary seal for durability. Constructed with a forged brass body, this valve ensures positive open or closed positions with a 1/4 turn. Designed for refrigeration service, it operates from -40°F to +325°F with a 700 PSIG design working pressure. The WAS Series includes an access fitting.

• Robotically welded body joint and full-size ports for unrestricted flow.
• Dual Teflon ball seals with a secondary seal for leak-free performance.
• Forged brass body with copper tube extensions and mechanical internal stops.

Product Highlights

UL and cUL Listed, this non-directional valve is suitable for CO2, CFC, HFC, and HCFC refrigerants.

Product Information

Standard Information

• Brand: SUPERIOR
• Manufacturer Part Number: 594WAS-21ST
• Country of Origin: USA

Technical Specifications

• Ball Port Diameter: 2.01"
• Body Material: Forged Brass
• Connection Size: 2-1/8" x 2-1/8" ODS
• Connection Type: Sweat or Braze
• CUL Listed: Yes
• Maximum Pressure: 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• UL Listed: Yes
• Valve Type: Ball Valve
• End-to-End Distance: 7.2IN
• Port Type: Full
• Product Type: Welded
• Seal Material: Teflon
• Flow (Cv): 270.0
• Application: Refrigeration
• Valve Sub-Type: Shutoff Valve
• UL Recognized: False
• Ball Material: Polished Brass/Carbon Steel
• Actuation: 1/4 Turn
• Welding: Robotically Welded
• Flow Direction: Non-directional
