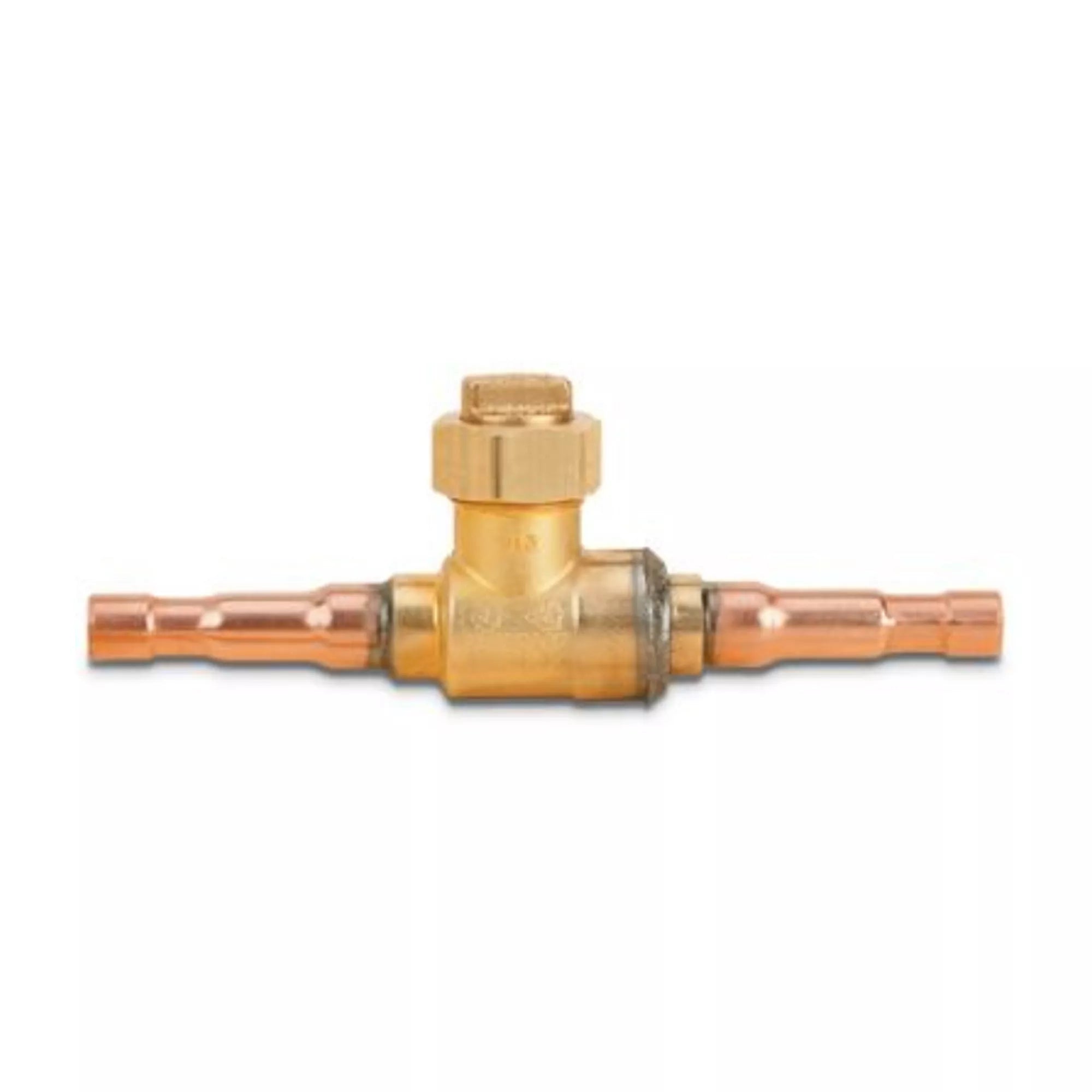

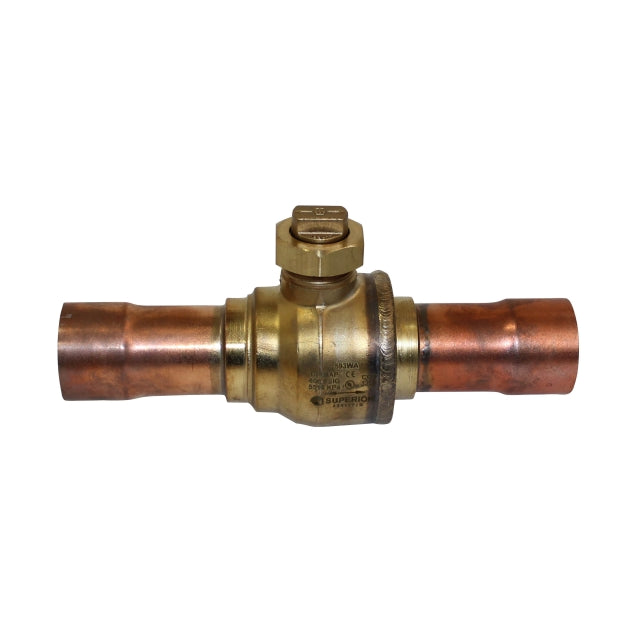

Superior 593WA-15ST Brass Ball Valve 1-5/8 inches ODS

Product Description

The SUPERIOR 593WA-15ST Brass Ball Valve is a WA Series valve designed for refrigeration systems and HVAC applications. Featuring a 1-5/8" ODS connection for sweat or braze installation, this valve ensures reliable shut-off capabilities. Constructed with a forged brass body and full-size ports, it allows unrestricted flow. It operates effectively across a wide temperature range of -40°F to 325°F and handles pressures up to 800 PSIG, making it suitable for various fluid control systems.

• Full refrigeration service temperature range of -40°F to +325°F (-40°C to +149°C).
• Design working pressure: 700 PSIG.
• UL® and cUL Listed, File No. SA3462 (N).

Product Highlights

This Integra-Seal WA Series ball valve offers non-directional flow, double seal protection, and Teflon seals for leak-free performance in HVACR applications.

Product Information

Standard Information

• Brand: SUPERIOR
• Manufacturer Part Number: 593WA-15ST
• Country of Origin: USA

Technical Specifications

• Ball Port Diameter: 1 1/2"
• Body Material: Brass
• Connection Size: 1 5/8" ODS
• Connection Type: Sweat or Braze
• CUL Listed: Yes
• Maximum Pressure: 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• UL Listed: Yes
• Valve Type: Ball Valve
• Application: Refrigeration
• UL Recognized: False
• Series: WA Series
• Seal Type: Integra-Seal
• Access Fitting: Without
• Seal Design: Double seal protection, no synthetic O-ring seals
• Valve Operation Feature: Seal cap permits valve operation without removal of seal cap
• Refrigerant Compatibility: CO2, CFC, HFC and HCFC refrigerants
• Design: Full port design for minimal pressure drop and maximum flow efficiency
• Flow (Cv): 135.0
• Options: Welded
• Port Type: Full
• Seal Material: Teflon
