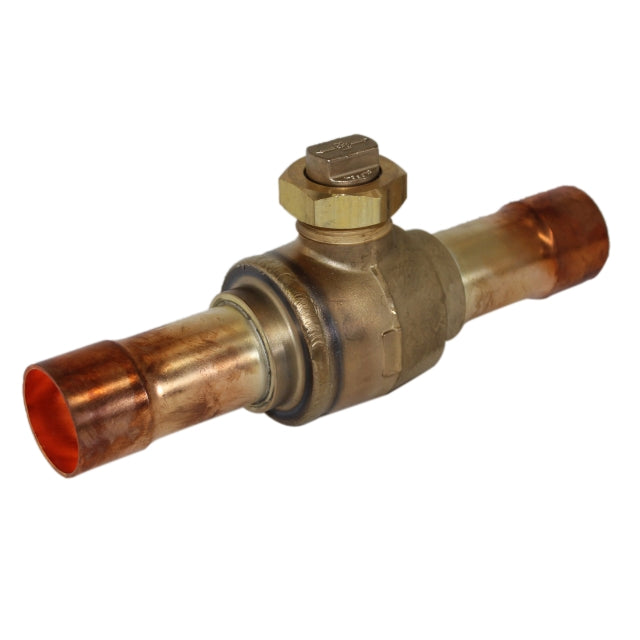

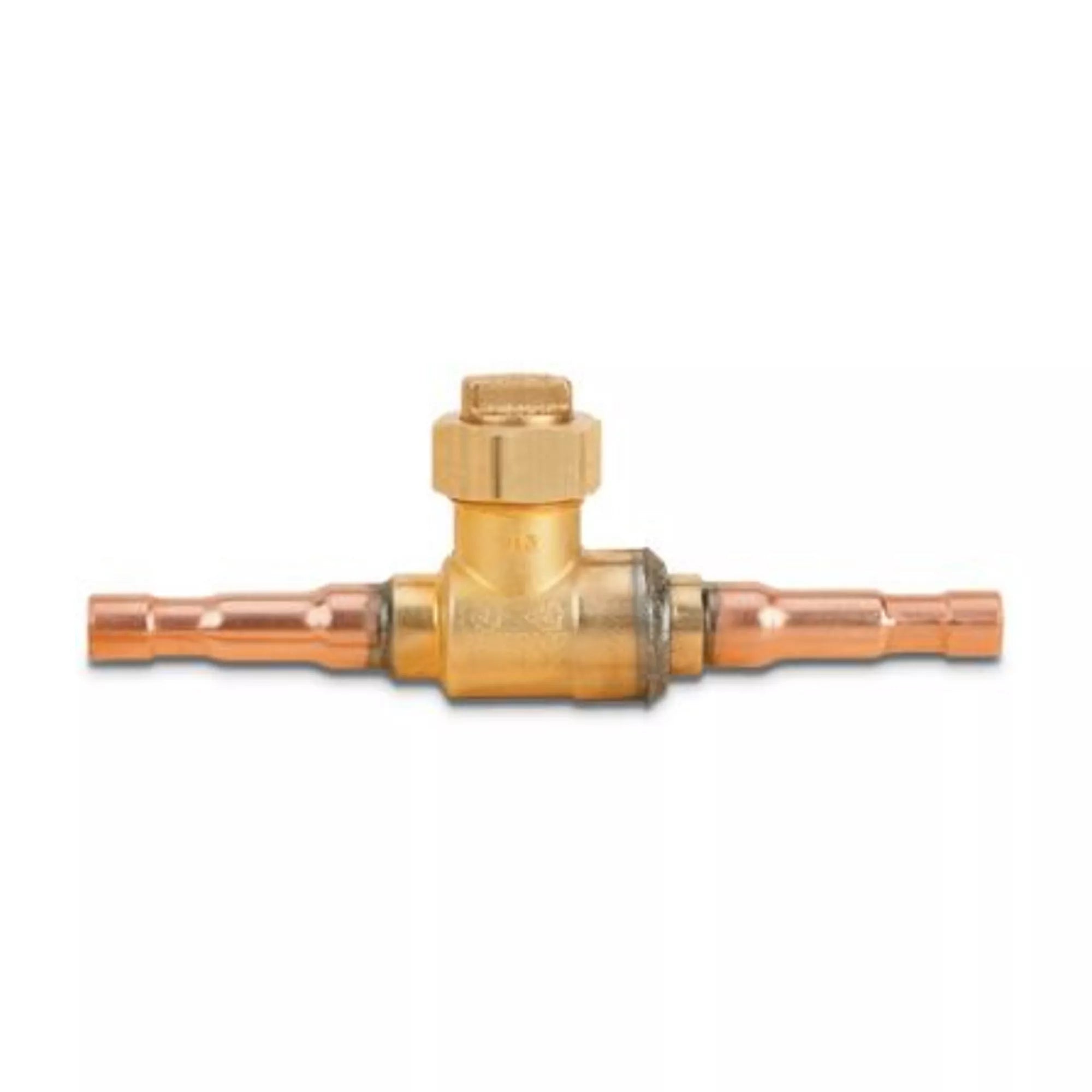

Superior 592WA-13ST brass ball valve 1-3/8 inches ODS without access fitting

Product Description

The SUPERIOR 592WA-13ST Brass Ball Valve is designed for HVACR applications, featuring a robotically welded body joint and full-size ports for unrestricted flow. This 1-3/8" ODS valve ensures leak-free performance with dual Teflon ball seals and a secondary seal mechanism. Constructed from forged brass with copper tube extensions, it offers positive open/closed positions with a 1/4 turn. It operates within a -40°F to 325°F temperature range and handles up to 800 PSIG, suitable for various refrigerants.

• Robotically welded body joint and 100% factory tested for leak-free performance.
• Dual Teflon ball seals and secondary seal for enhanced reliability.
• Forged brass body with copper tube extensions and 1/4 turn operation.

Product Highlights

This brass ball valve offers robust construction and advanced sealing for reliable flow control in refrigeration and HVACR systems.

Product Information

Standard Information

• Brand: SUPERIOR
• Manufacturer Part Number: 592WA-13ST
• Country of Origin: USA

Technical Specifications

• Ball Port Diameter: 1 1/2"
• Body Material: Forged Brass
• Connection Size: 1 3/8"
• Connection Type: ODS Sweat/Braze
• Cubic Measurement: 0.0489
• CUL Listed: Yes
• Maximum Pressure: 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• UL Listed: Yes
• Valve Type: Full Port Ball Valve
• Prop 65 Compliant: Yes
• Application: Refrigeration System
• Construction Options: Welded
• Flow Type: Non-Directional
• Seal Material: Teflon
• Tube Extension Material: 100% Copper
• Flow Application: Suction, Discharge, and Liquid Lines
• Seal Design: Integra-Seal
• Stem Seal Type: Dual Teflon Packing
• Body Joint Type: Robotically Welded
• Refrigerant Compatibility: CO2, CFC, HFC and HCFC refrigerants listed in CAN/CSA B52 and ANSI/ASHRAE 15 Section 9.2
• Ball Material: Polished Brass or Carbon Steel
• Actuation: 1/4 Turn
• Secondary Seal Feature: Seal Cap
• Flow Coefficient (Cv): 110.0
• Seal Protection: Double Seal (No Synthetic O-rings)
