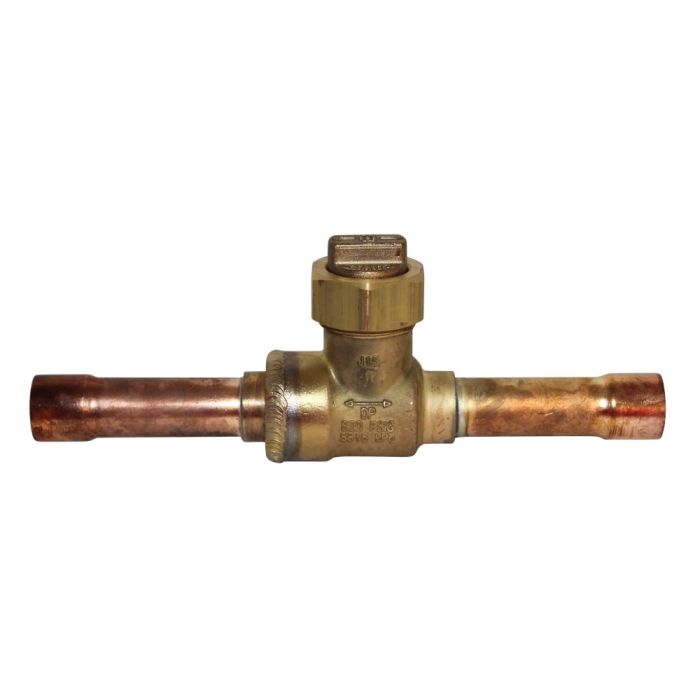

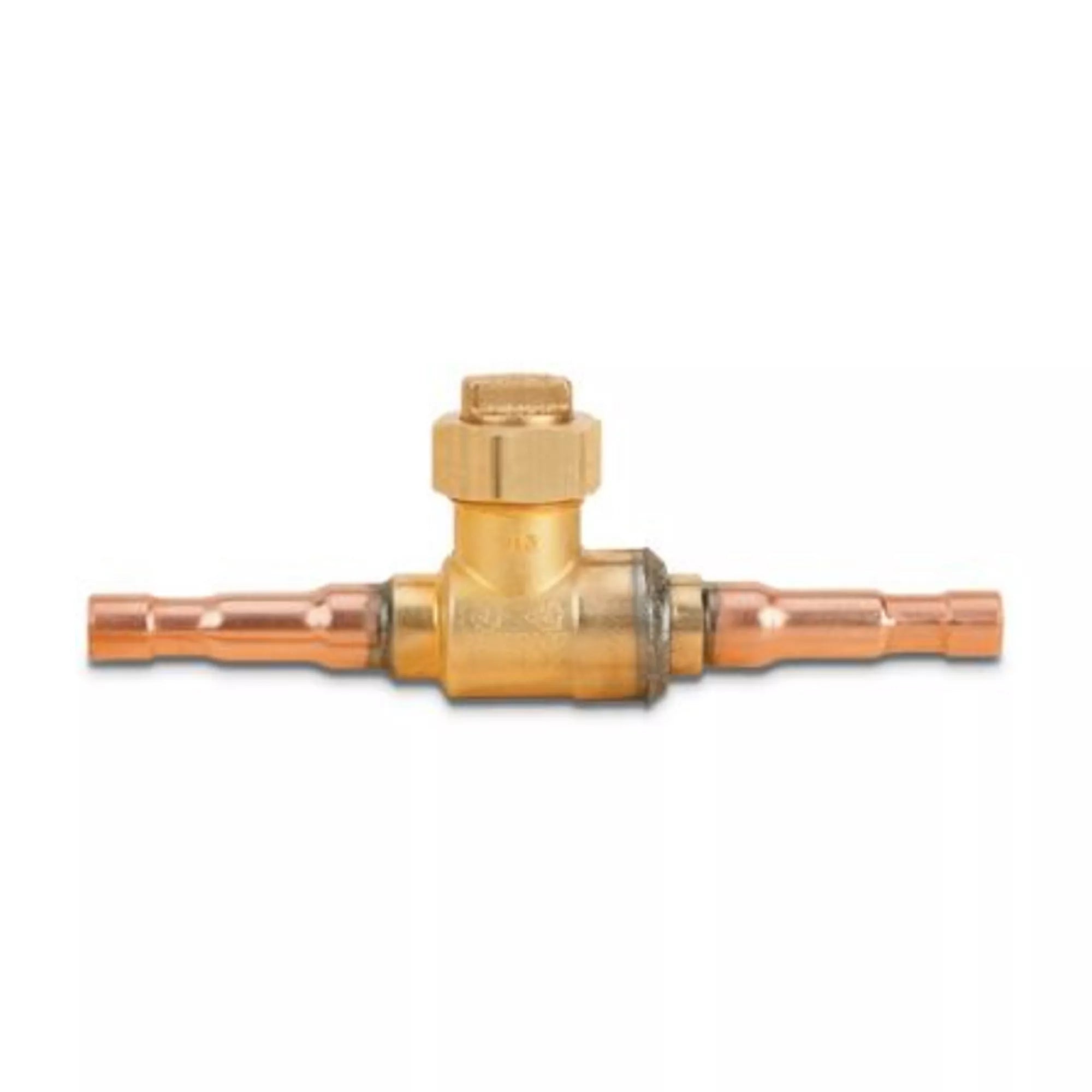

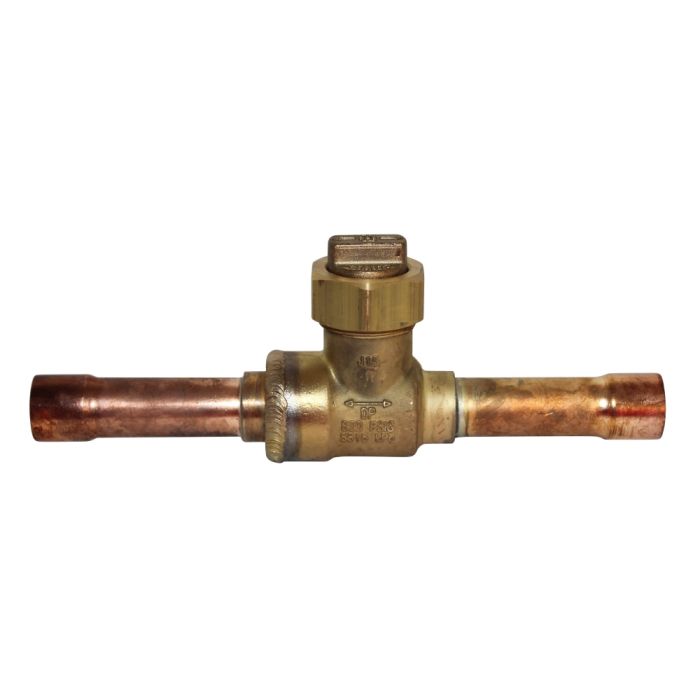

Superior 586WA-10ST Brass Ball Valve 5/8 inches ODS Without Access Fitting

Product Description

The SUPERIOR 586WA-10ST is a brass ball valve designed for HVACR applications. This 5/8" ODS valve features a robotically welded body joint and full-size ports for unrestricted flow, ensuring leak-free performance. It incorporates dual Teflon ball seals and a secondary seal for reliability, even in harsh conditions. Constructed with a forged brass body and copper tube extensions, it offers positive open or closed positions with a 1/4 turn operation. The non-directional flow design allows installation in any position.

• Robotically welded body joint and 100% factory tested for leak-free performance.
• Dual Teflon ball seals with a secondary seal for enhanced reliability in unfavorable conditions.
• Forged brass body with copper tube extensions and 1/4 turn operation for positive flow control.

Product Highlights

This brass ball valve is UL and cUL Listed, features a non-directional flow, and operates within a temperature range of -40°F to 325°F, suitable for various refrigerants.

Product Information

Standard Information

• Brand: SUPERIOR
• Manufacturer Part Number: 586WA-10ST
• Country of Origin: USA

Technical Specifications

• Ball Port Diameter: 1/2"
• Body Material: Forged Brass
• Connection Size: 5/8" ODS
• Connection Type: Sweat or Braze
• CUL Listed: Yes
• Maximum Pressure: 800 PSIG
• Operating Temperature Range: -40°F to 325°F
• UL Listed: Yes
• Valve Type: Ball Valve
• Type: Welded
• Actuation Type: 1/4 Turn
• End Connection: ODS x ODS
• End to End Distance: 6.5 Inch
• Ball Material: Polished Brass or Carbon Steel
• Port Type: Full
• Extension Material: Copper Tube
• Seal Cap Material: Forged Brass
• Application: Refrigeration
• UL Recognized: False
• Series: WA Series
• Model: Integra-Seal
• Access Fitting: Without Access Fitting
• Refrigerant Compatibility: CO2, CFC, HFC & HCFC refrigerants
• Design Working Pressure: 700 PSIG
