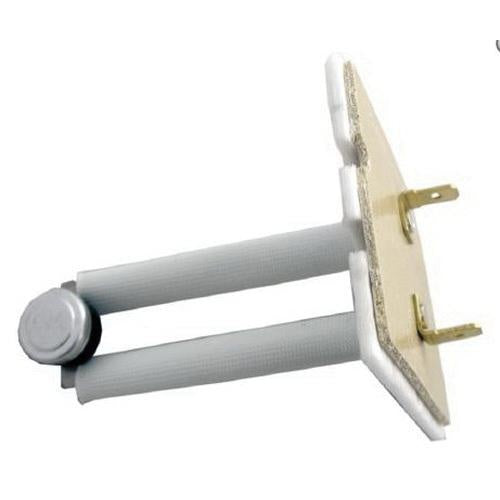

Supco SHL518 limits and plenum thermostat 120/240 VAC SPST switch

Product Description

The Supco SHL518 Limits and Plenum Thermostat is a bi-metal temperature control designed for reliable operation in HVAC systems. Operating at 120/240 VAC, this SPST switch features an amperage rating of 15 A at 120 VAC and 10 A at 240 VAC resistive. It opens at 250 deg F and closes at 210 deg F, with a pilot duty rating of 125 V-A. Its compact design, measuring 1.88 in W x 2.94 in H, ensures versatile application.

• Economical and designed as direct OEM replacements.
• Utilizes 36T electrical ratings for consistent performance.
• Capable of operating in environments with up to 350 deg F maximum ambient temperature.

Product Highlights

Proven reliability in a compact, versatile, and cost-effective bi-metal temperature control design.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SHL518

Technical Specifications

• Amperage Rating: 15 A at 120 VAC, 10 A at 240 VAC Resistive, 3 A Full Load, 12 A Locked Rotor at 120 VAC, 1.5 A Full Load, 6 A Locked Rotor at 240 VAC Inductive
• Material: Bi-Metal
• Pilot Duty Rating: 125 V-A at 120 and 240 VAC
• Series: SHL
• Switch Type: SPST
• Temperature Rating: 250 deg F Open, 210 deg F Close
• Voltage Rating: 120/240 VAC
