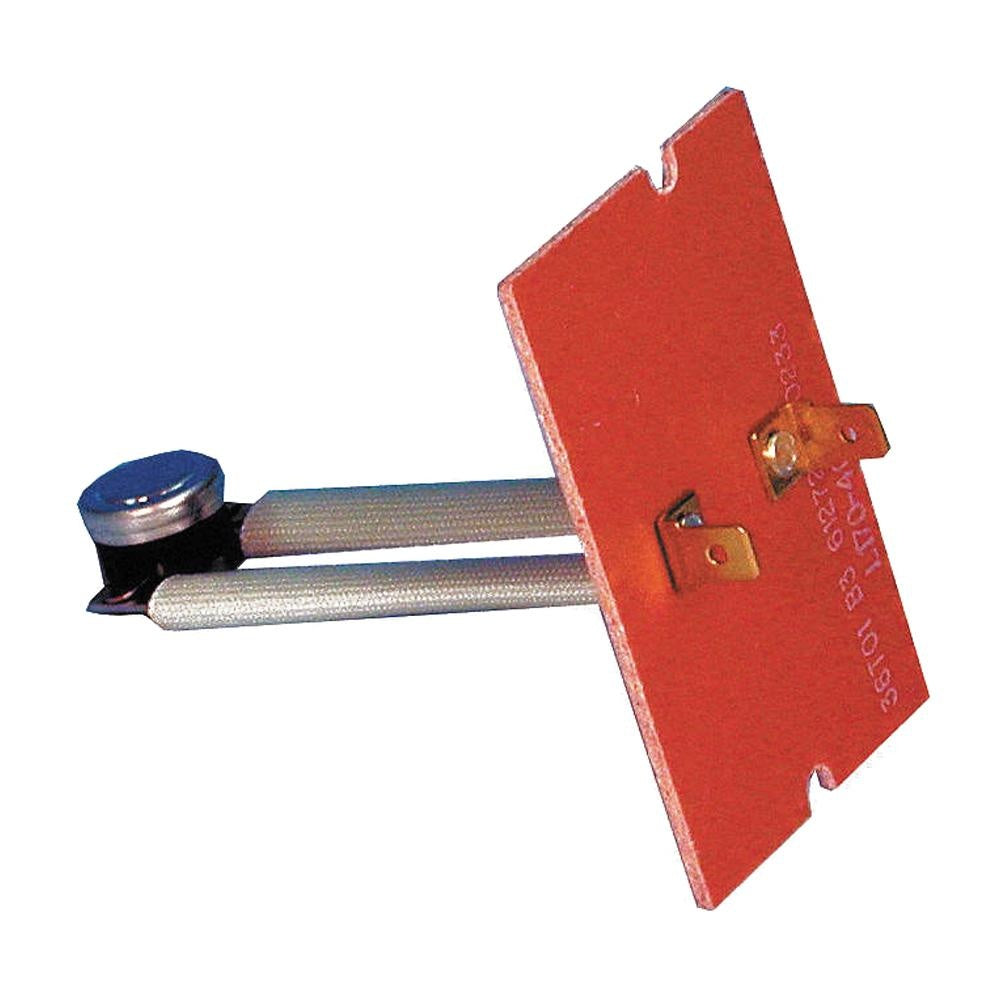

Supco SHL507 Plenum Thermostat 120 to 480 VAC 3 A at 120 VAC 1.5 A at 240 VAC SPST Switch

Product Description

The Supco SHL507 Plenum Thermostat is designed for reliable temperature control in HVAC systems. Operating with a voltage rating of 120 to 480 VAC, it features an SPST switch with an open on rise switching action. This thermostat handles 3 A at 120 VAC and 1.5 A at 240 VAC, with an open temperature of 140 deg F and a close temperature of 110 deg F, and a 30 deg F differential. Its compact design makes it suitable for various plenum thermostat applications.

• 1/2 in bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design
• 3-1/8 in L insertion
• Pilot-duty rated

Product Highlights

Proven reliability in a compact, versatile design.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SHL507

Technical Specifications

• Amperage Rating: 3 A at 120 VAC, 1.5 A at 240 VAC
• Series: SHL Series
• Suitable For Use With: Plenum Thermostats
• Switch Type: SPST
• Switching Action: Open on Rise
• Temperature Rating: 140 deg F Open, 110 deg F Close, 30 deg F Differential
• Voltage Rating: 120 to 480 VAC
