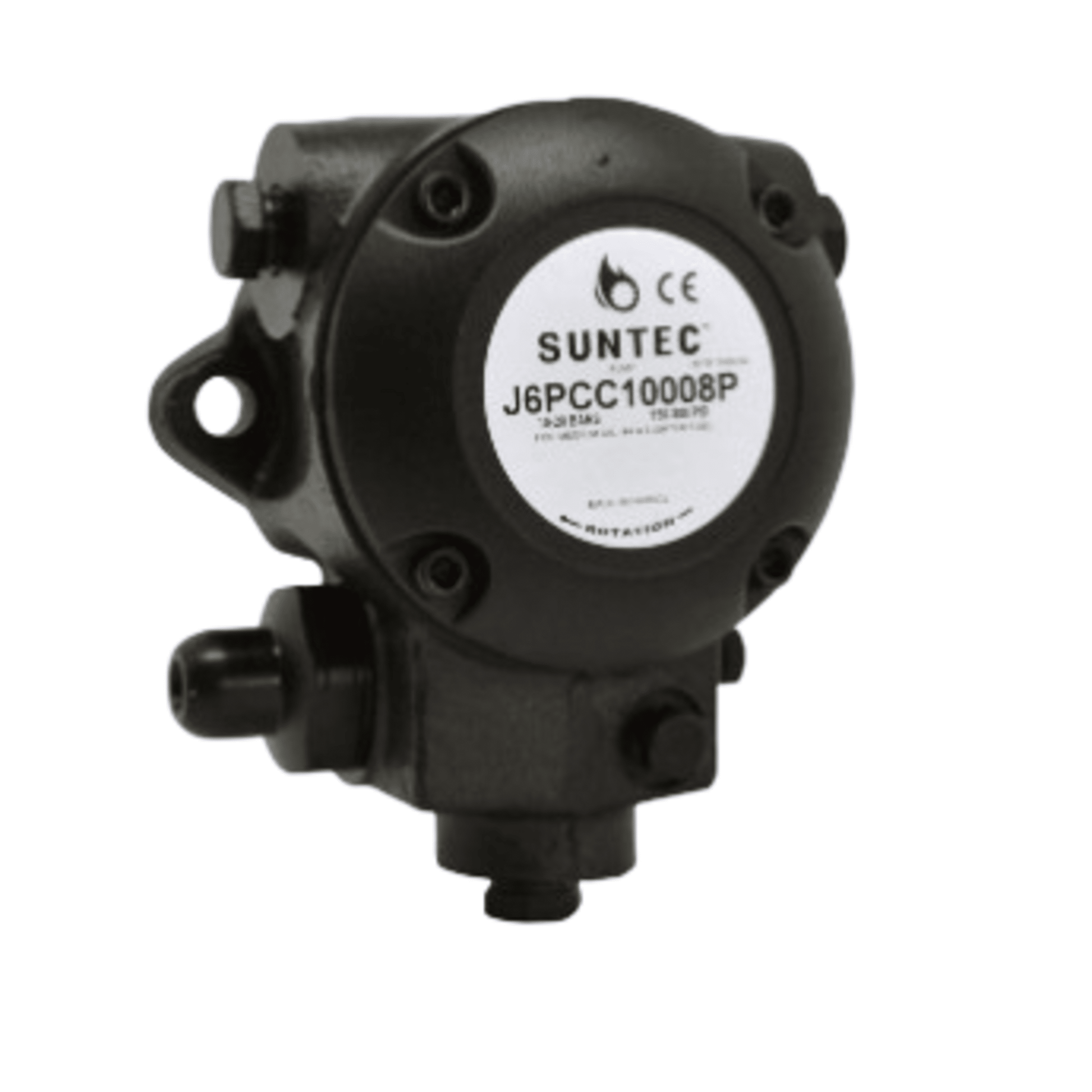

Suntec J6PCC10008MUCSPC gear pump J6 1000 two stage 1725/3450 RPM LH-LH 17/63 GPH replacement J6PCC1000G

Product Description

The SUNTEC J6PCC10008MUCSPC is a gear pump, also known as the J6 1000, designed for medium capacity oil burners. This two-stage fuel oil pump operates at 1725/3450 RPM, delivering 17/63 GPH. It features a pressure regulating valve with cut-off function, a built-in filter for oil purification, and automatic bleeding in two-pipe operation. Compatible with fuel oil #4 and lighter, including biodiesel blends (B6-B20), it supports both one or two-pipe systems.

• Pressure regulating valve with cut-off function
• Built-in filter for oil purification
• Automatic bleeding in two-pipe operation

Product Highlights

Medium capacity gear pump for oil burners with pressure regulation, built-in filter, and automatic bleeding.

Product Information

Standard Information

• Brand: SUNTEC
• Manufacturer Part Number: J6PCC10008MUCSPC

Technical Specifications

• Manufacturer Part Number: J6PCC10008MUCSPC
• Category: Motor Driven Pump
• Type: Gear Pump
• Flow Rate: Up to 90 GPH (gallons per hour) at 3450 RPM
• Pressure Range: 150-300 PSI
• Fuel Compatibility: Suitable for fuel oil #4 and lighter, including biodiesel blends (B6-B20)
• System Configuration: Can be used in one or two-pipe systems
• Mounting: Flange mounting according to EN 225
• Inlet/Outlet Ports: 1/4" NPTF for inlet and return, 1/8" NPTF for nozzle outlet
• Operating Temperature: 32°F to 194°F
• Suction Height: 6 inches Hg max vacuum for single pipe, 13.5 inches Hg max vacuum for two-pipe systems
